WINNEBAGO ILUKA

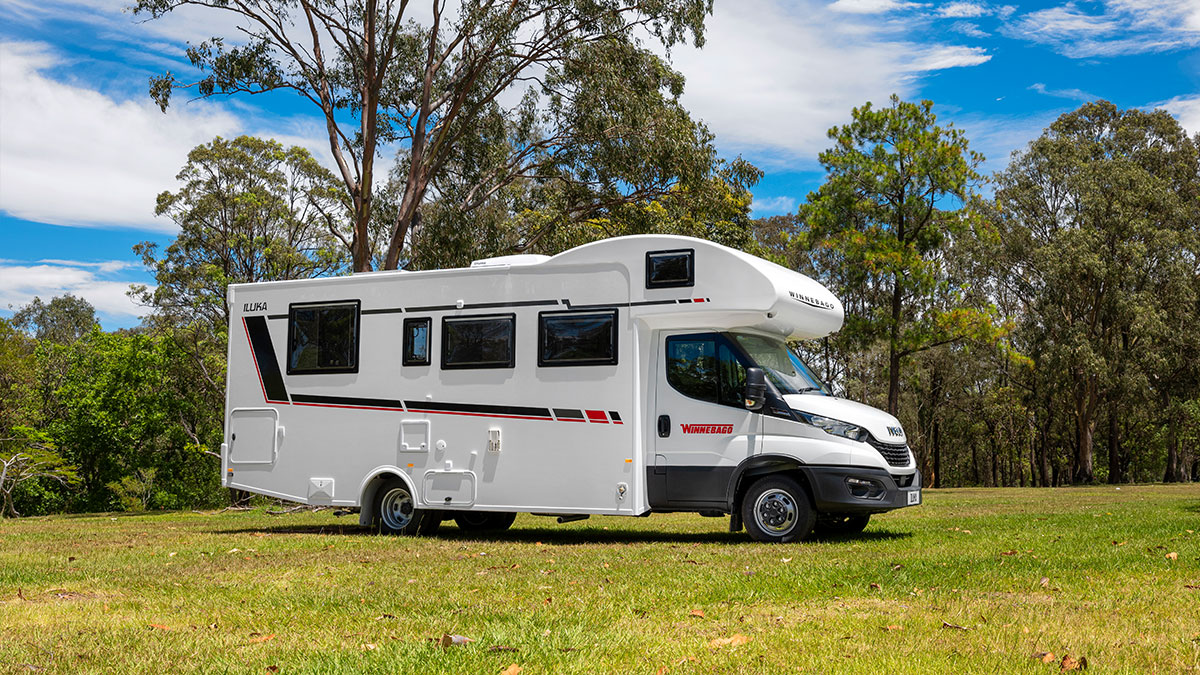

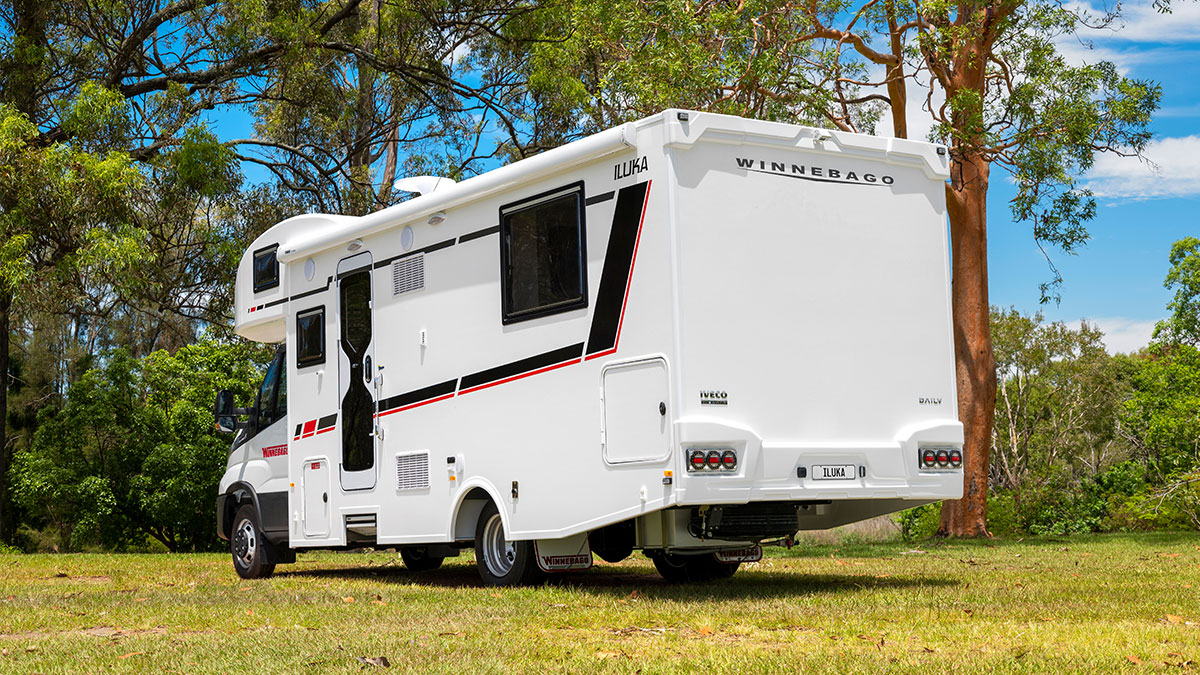

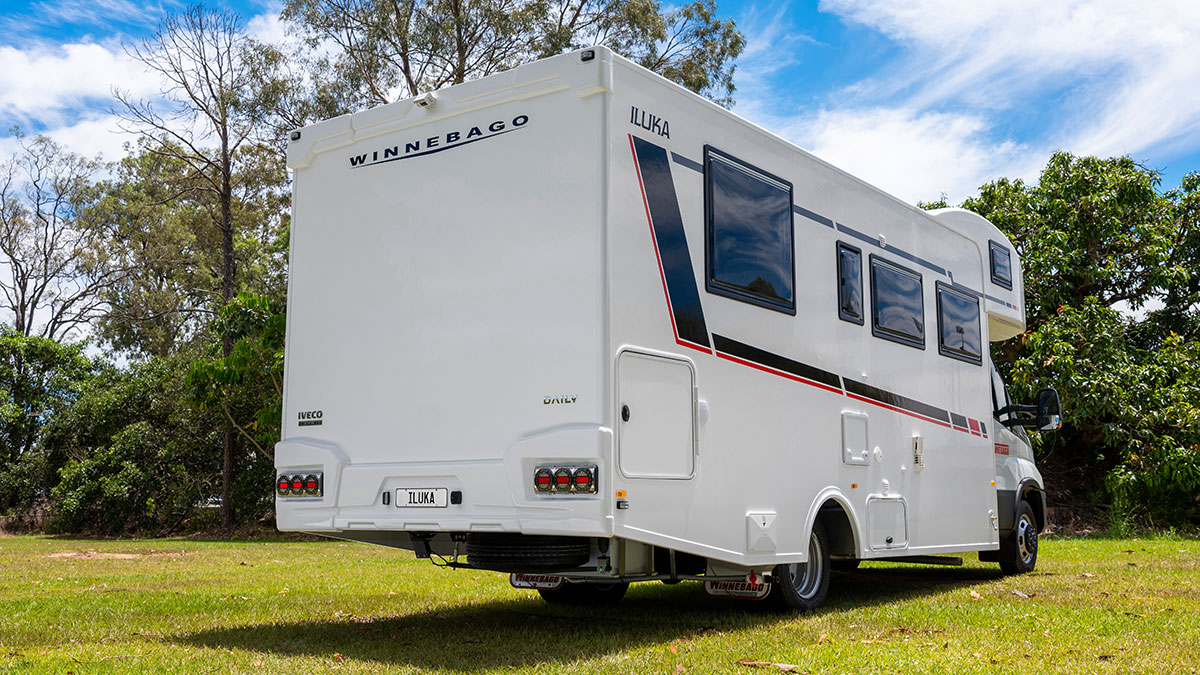

Winnebago’s Iluka motorhome is the essence of class and relaxation...

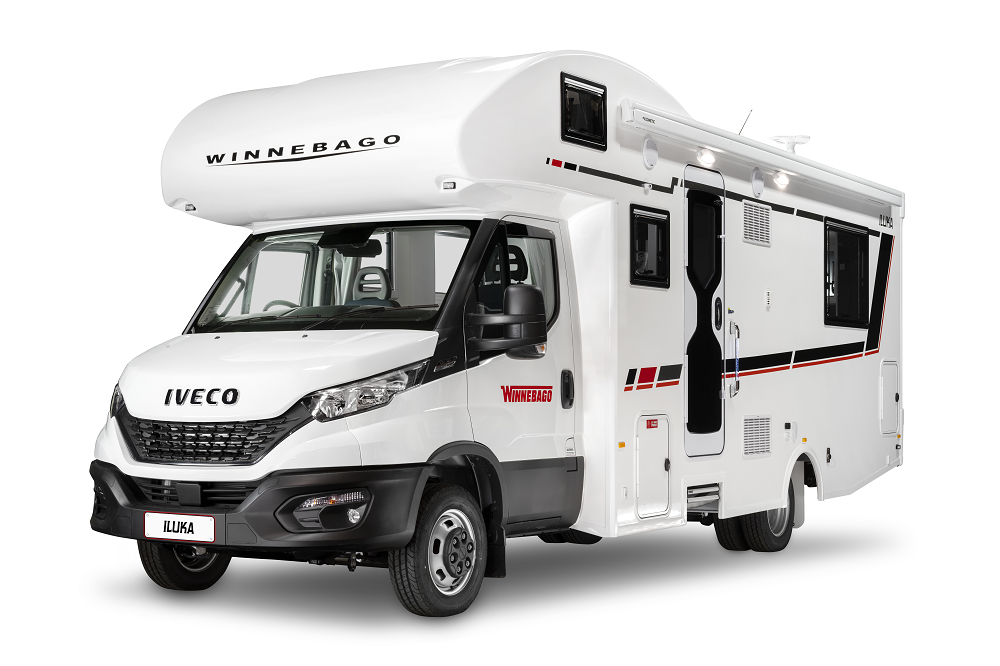

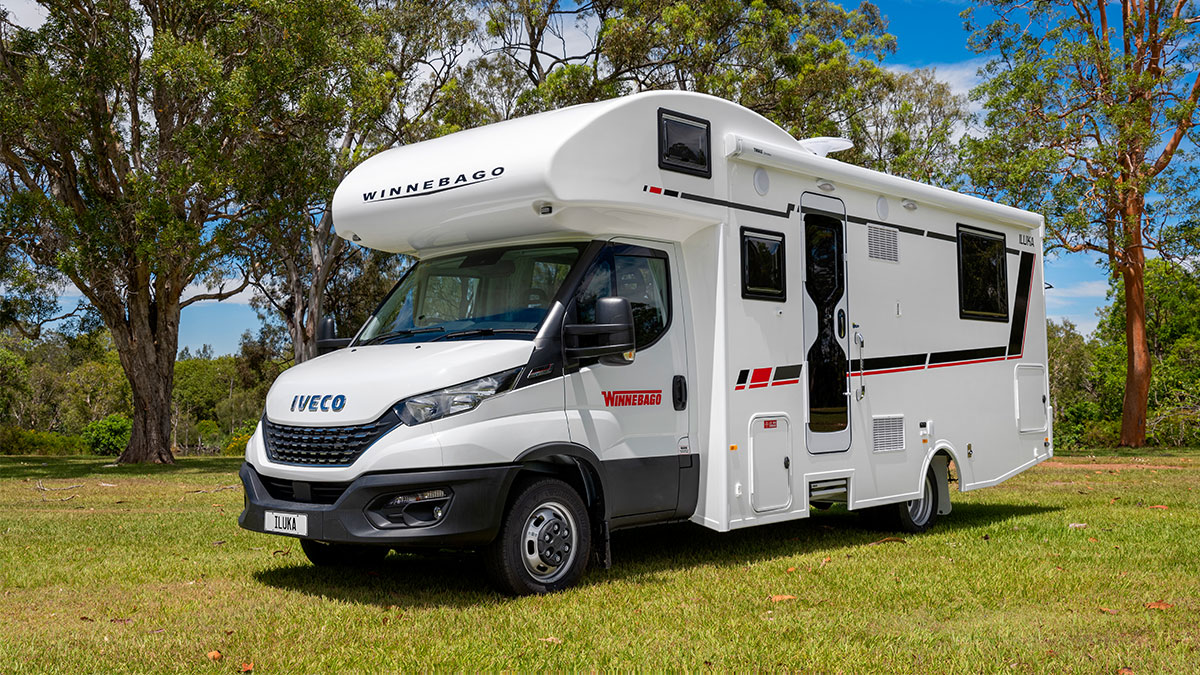

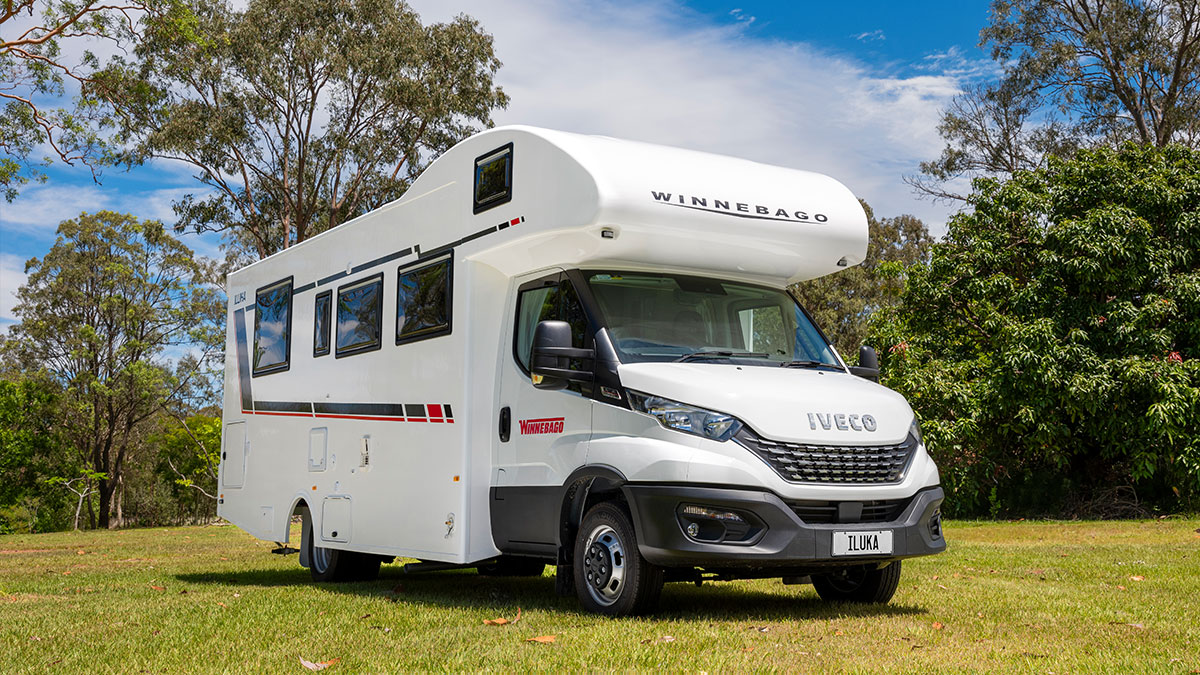

The Iluka features a thoughtfully designed large rear bedroom, allowing easy access to the north/south bed. The fully equipped kitchen is detached from the bedroom by a separate shower and toilet on either side of the motorhome. Built on the impressive IVECO 50 Daily platform, the Iluka model sleeps up to four travellers. Customise the Iluka to your style with optional single bed layout as well as optional dinette configurations. This much sought-after layout will have you entertaining, travelling, and sleeping in a world-class ‘hotel on wheels’.

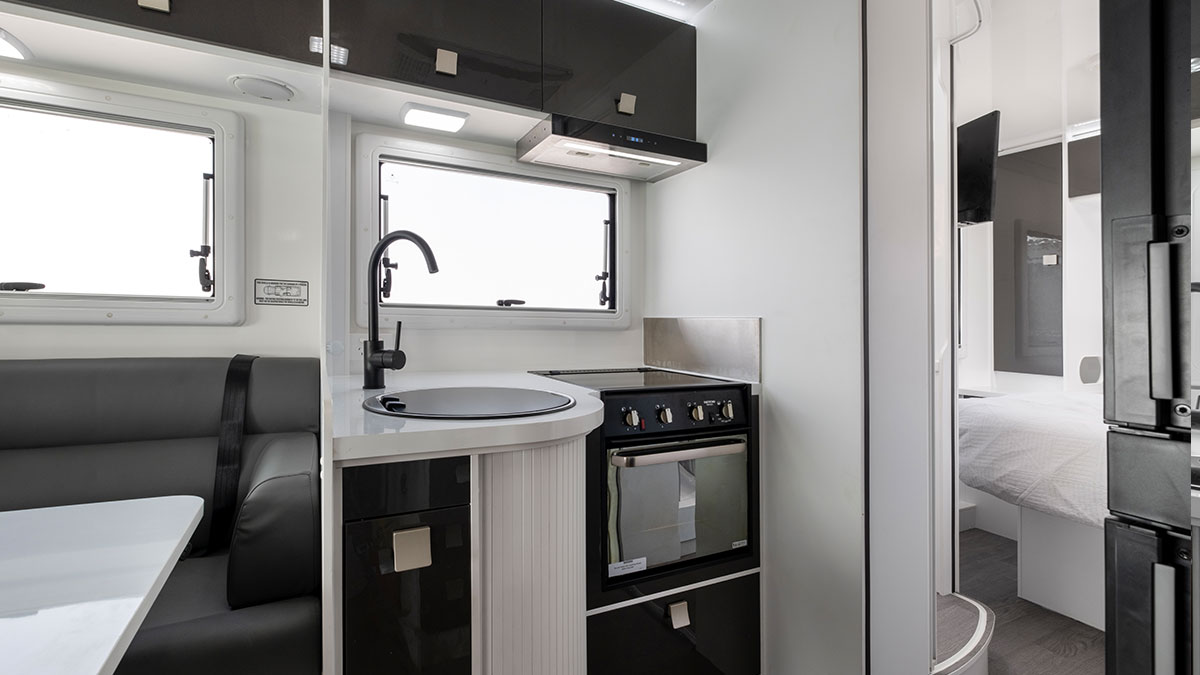

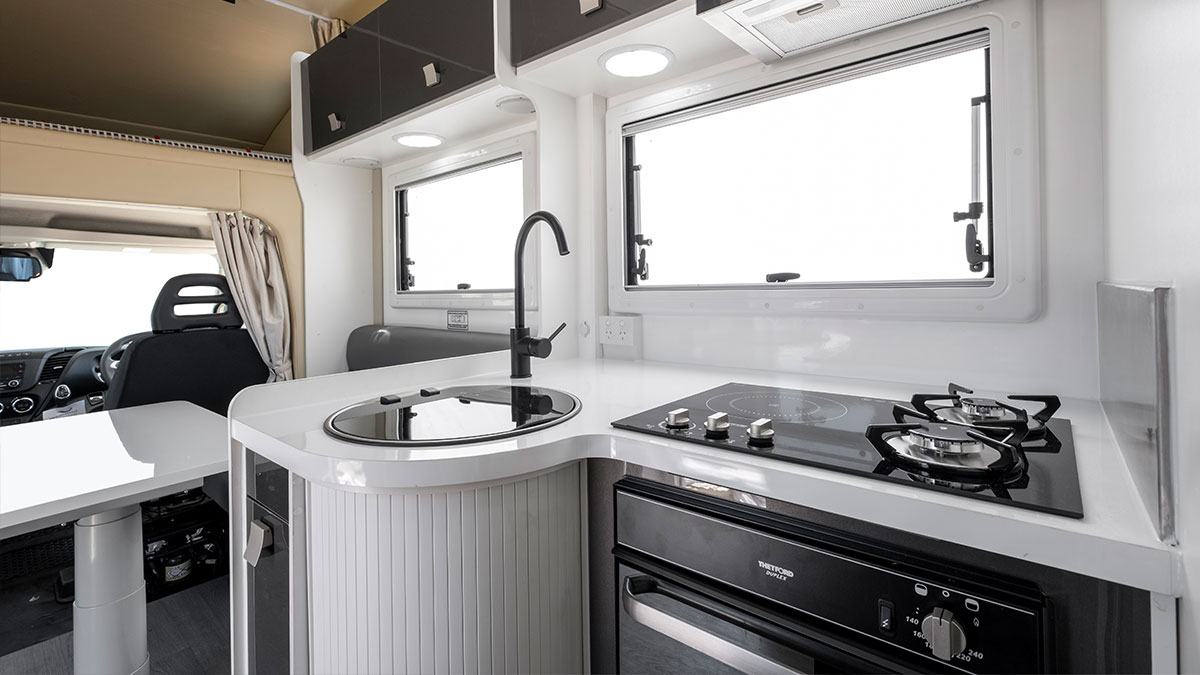

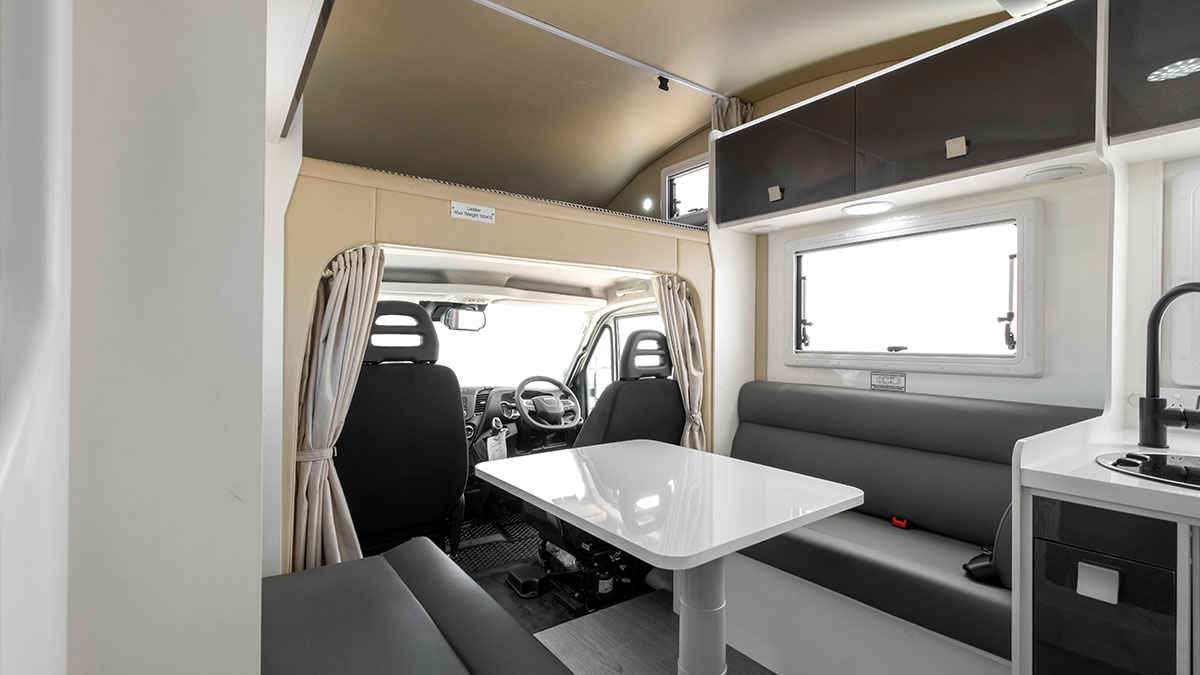

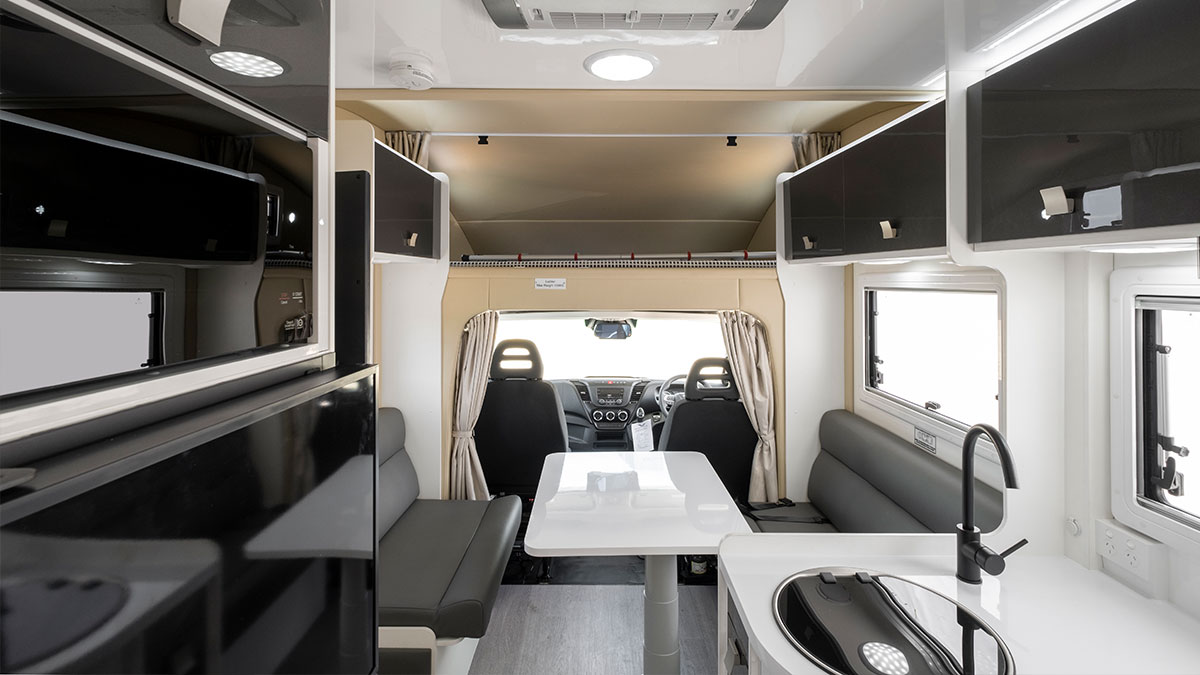

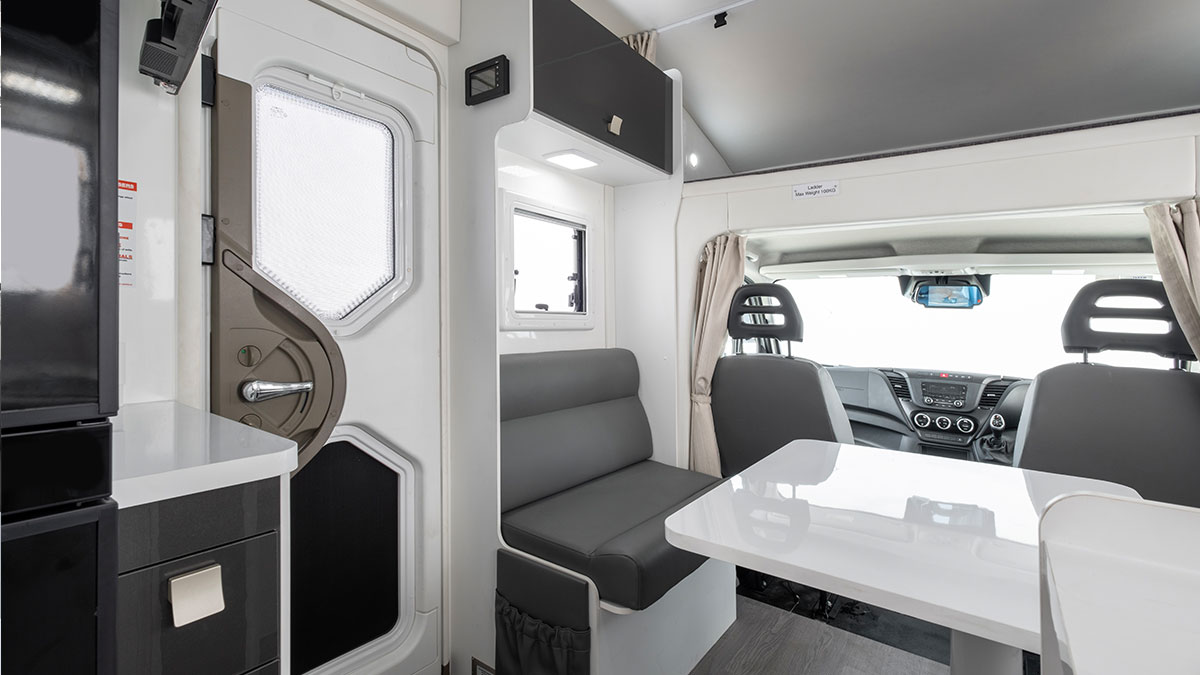

ENTERTAINMENT AREA

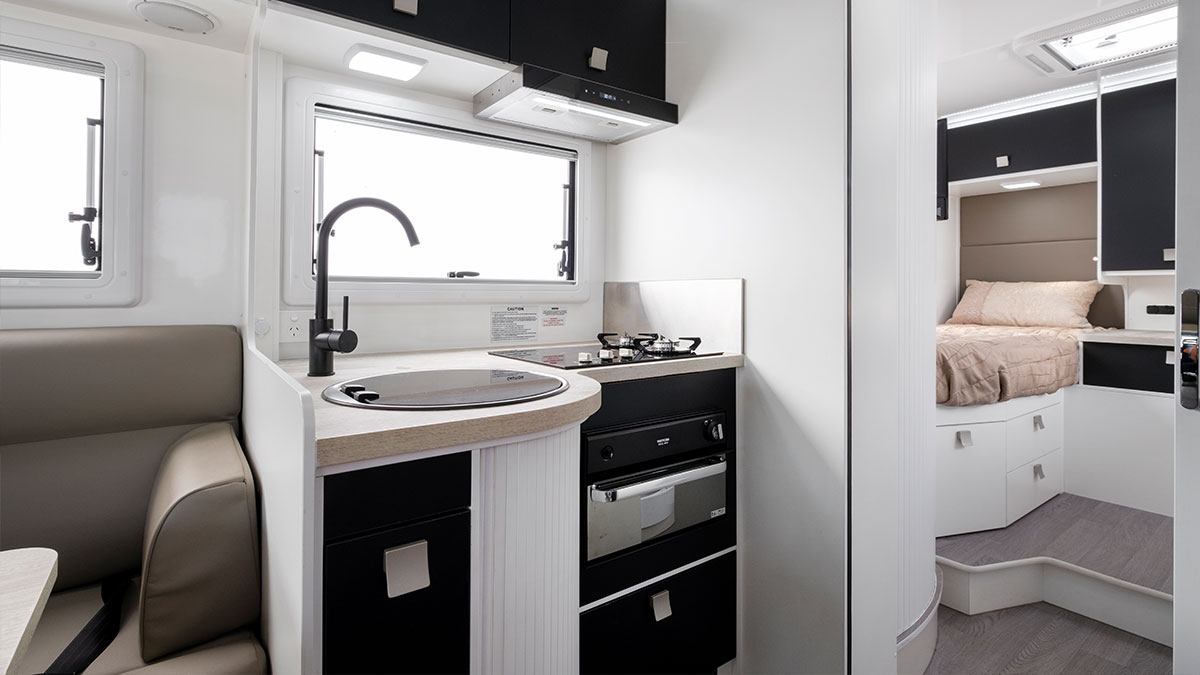

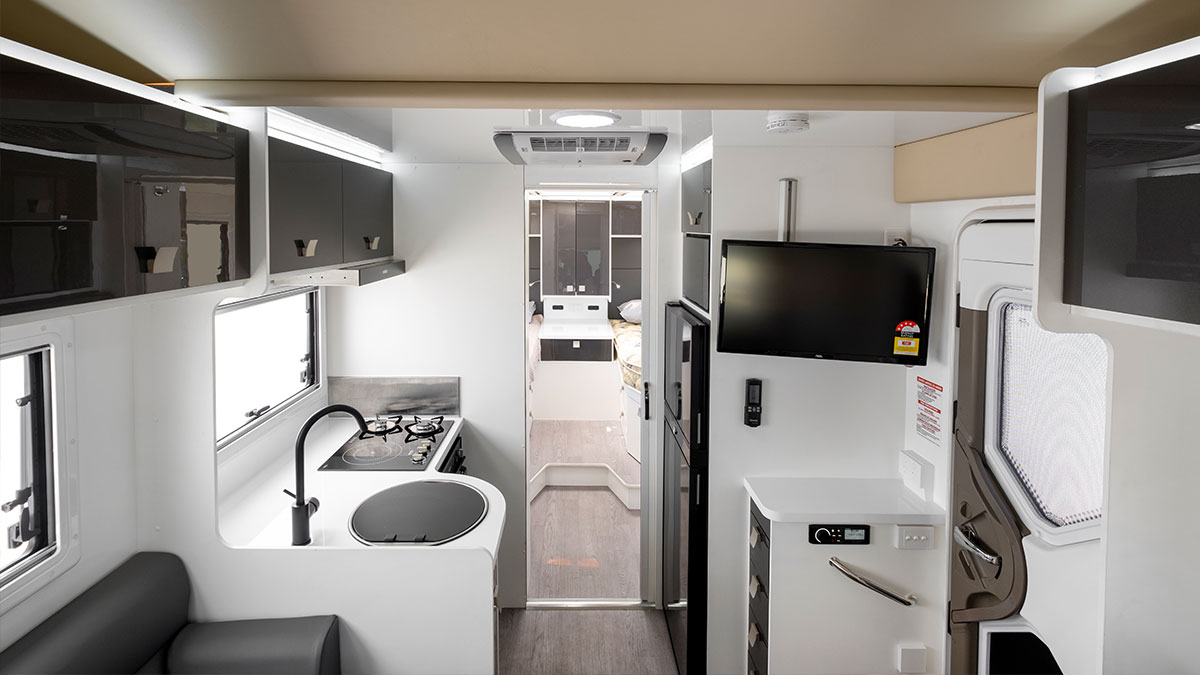

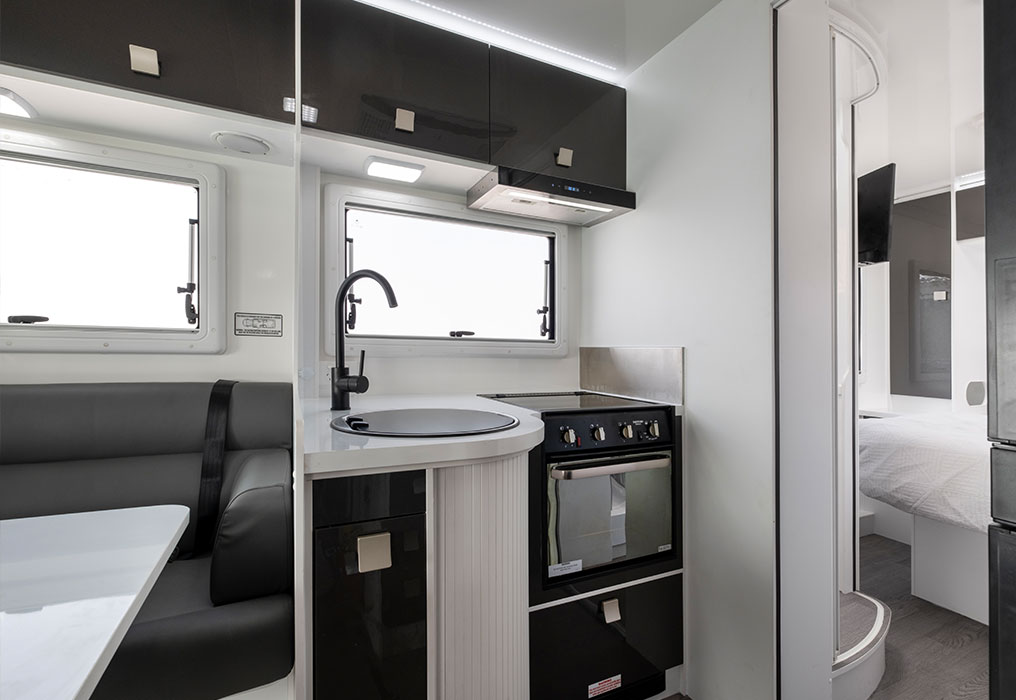

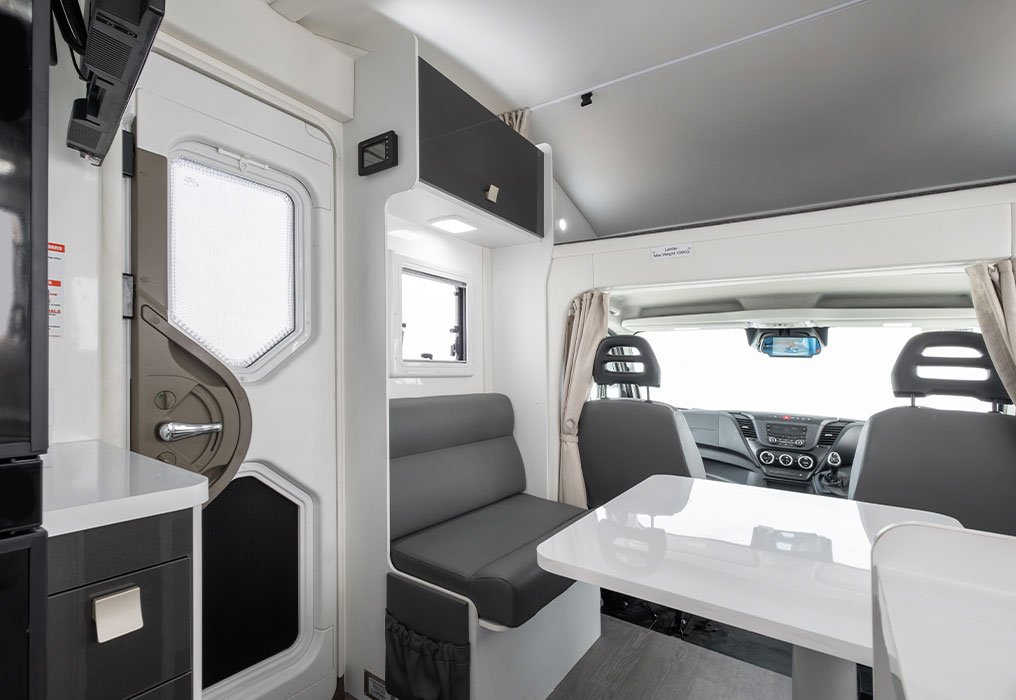

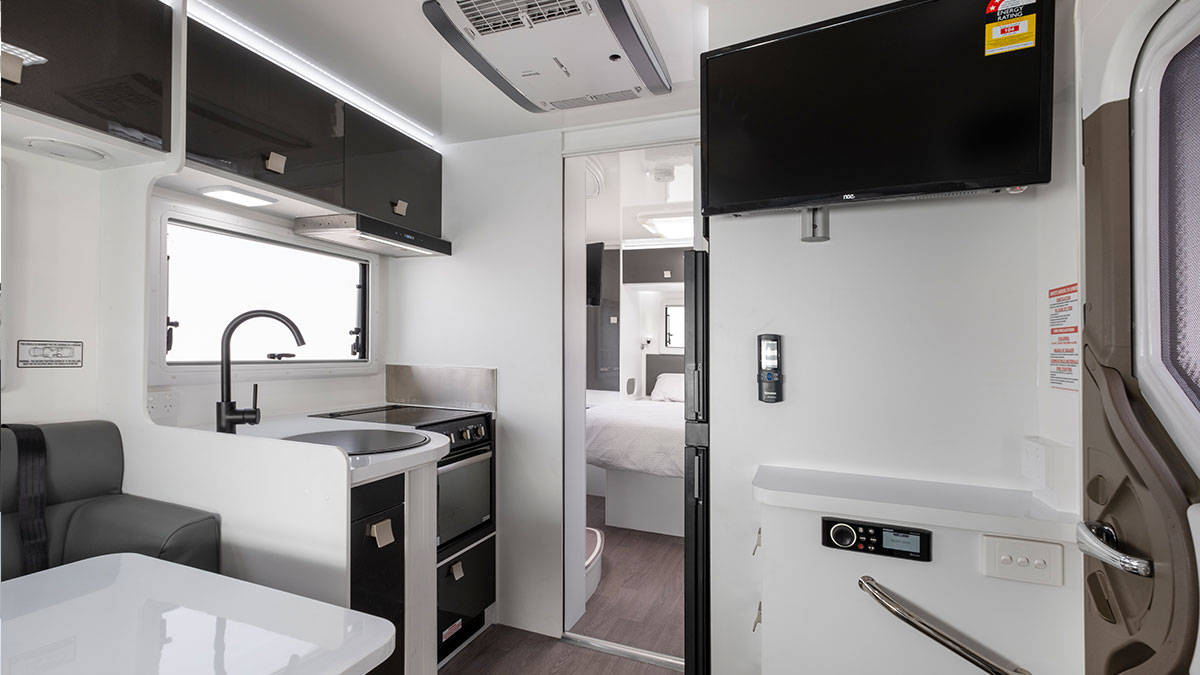

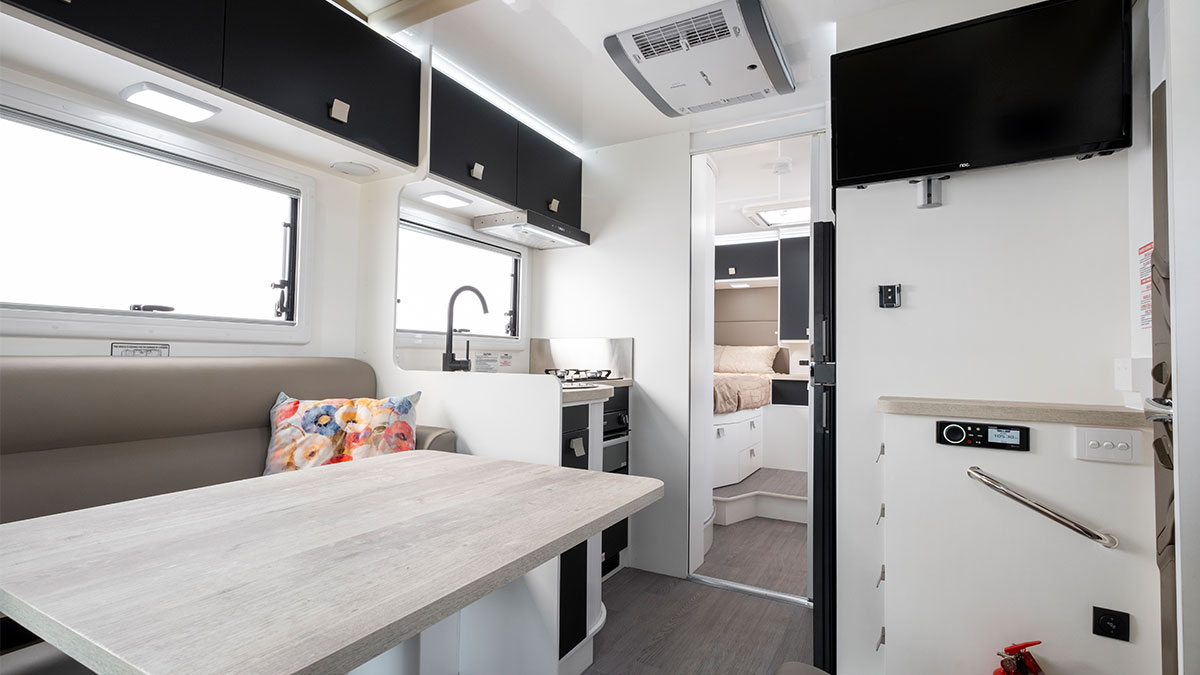

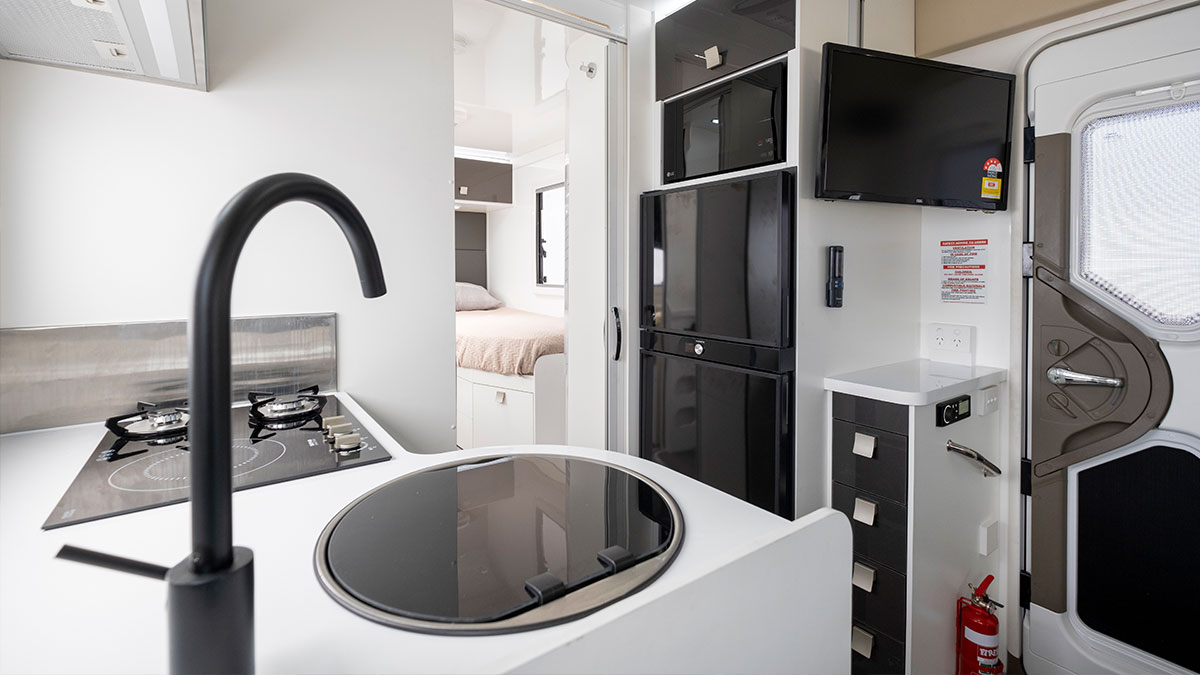

Entertain guests in your fully equipped kitchen and spacious dinette

REVERSING CAMERA

Your full colour reversing camera with 5” LCD monitor helps you to travel safely

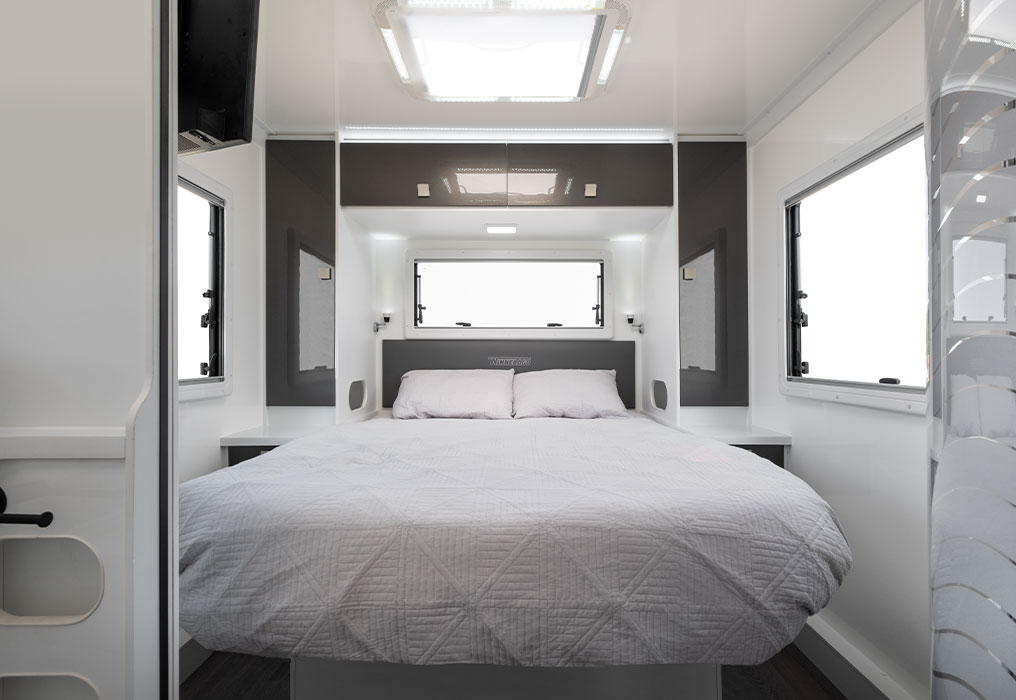

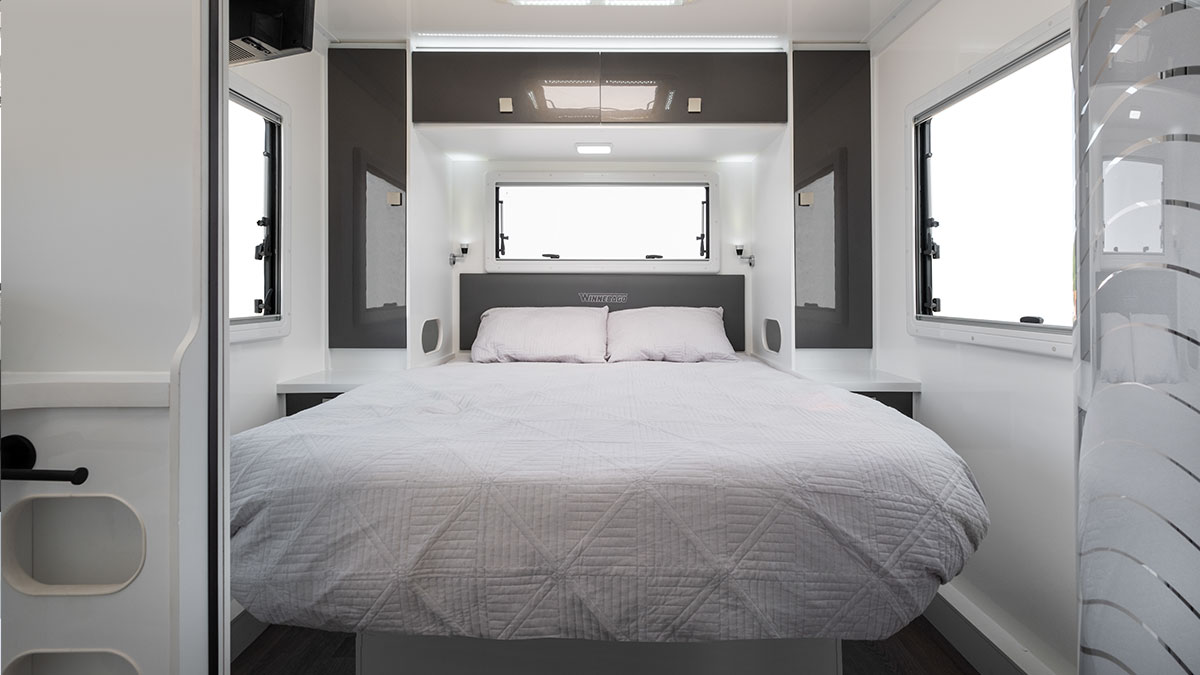

ISLAND BED

Enjoy the luxury of an island bed which can be closed off from the rest of the motorhome providing complete privacy.

AIR CONDITIONING

2.4 kW Air Conditioner 240V reverse cycle is guaranteed to keep you cool during summer and warm during winter

Palatte A - "Metallic Grey"

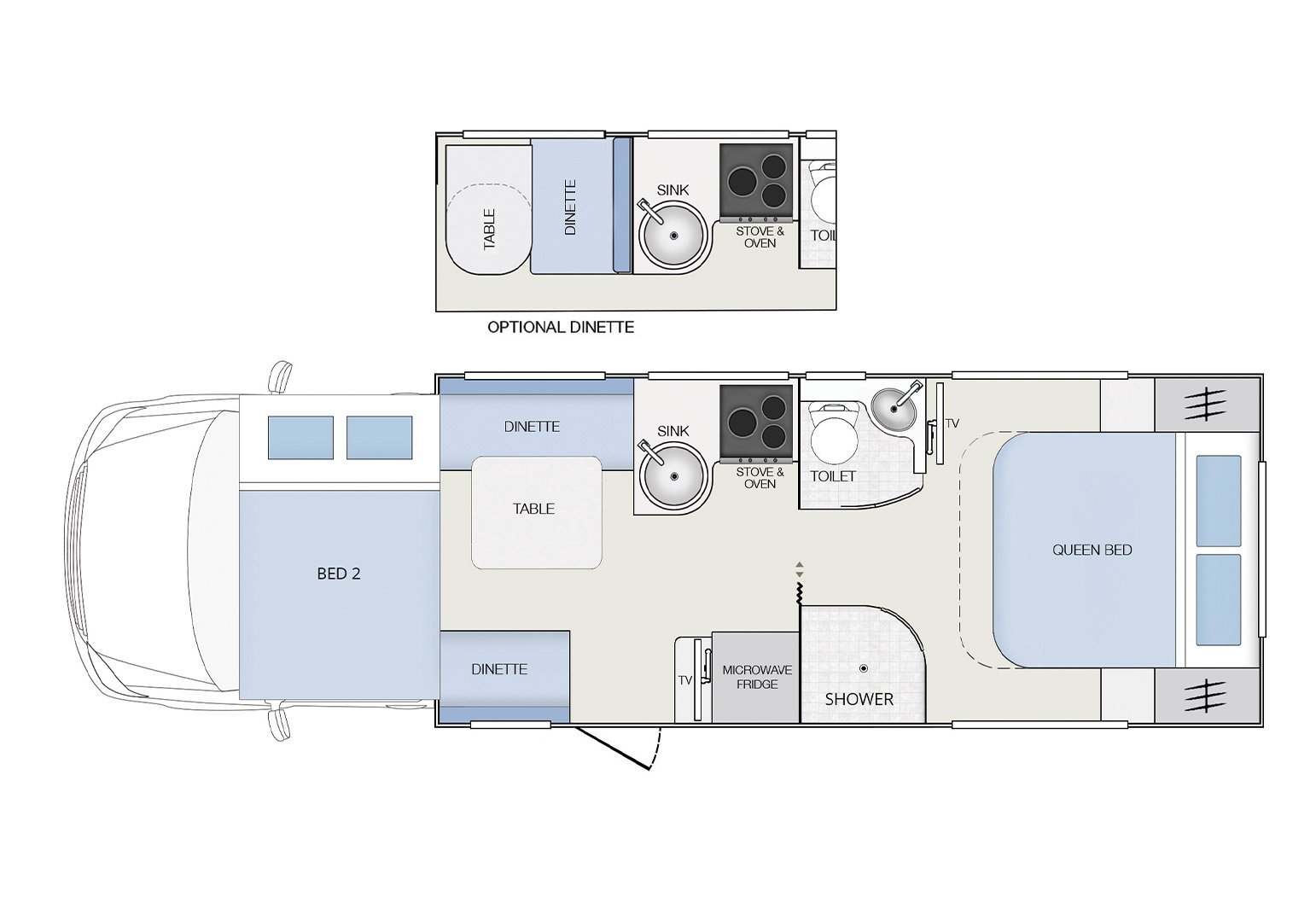

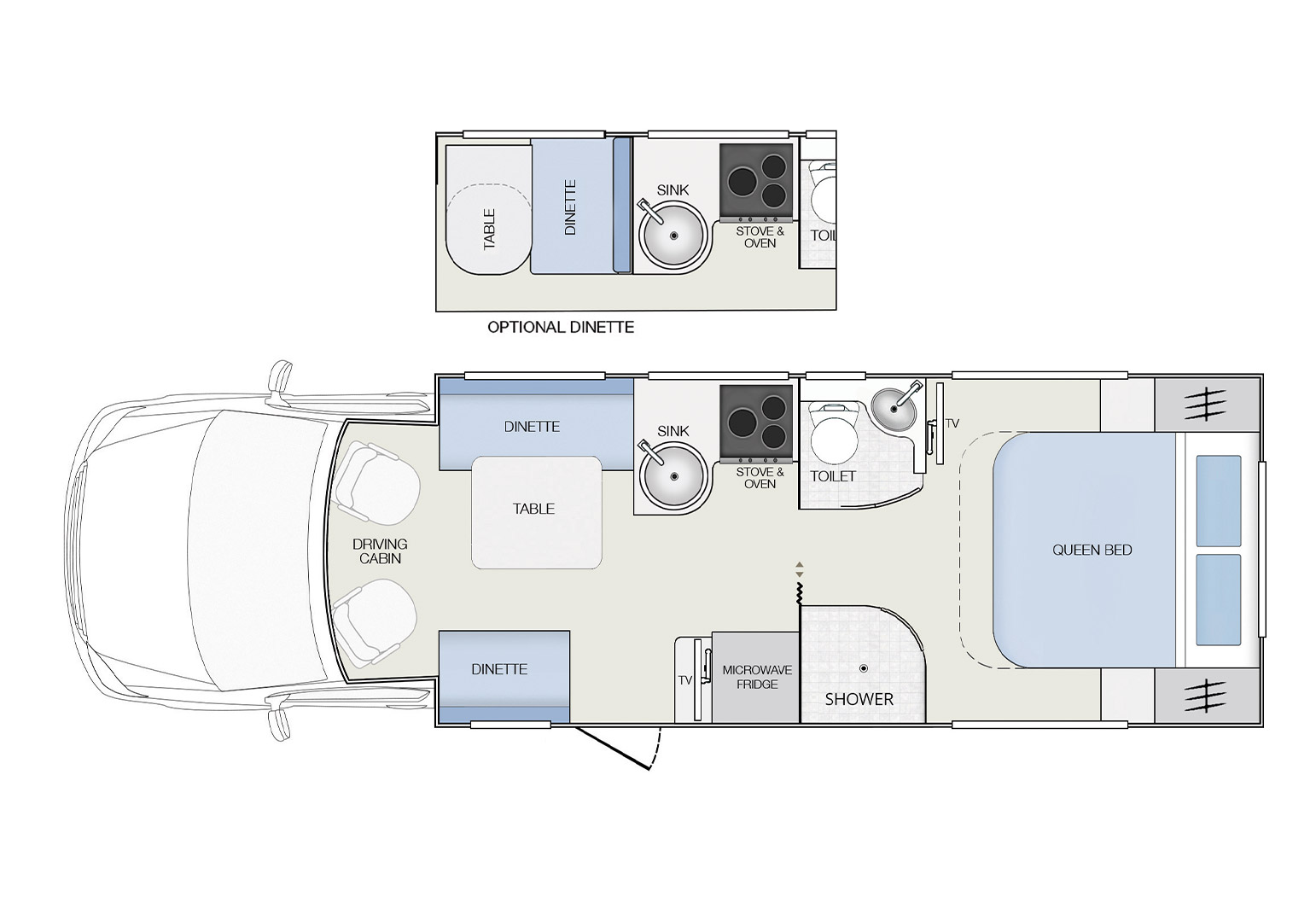

Layout

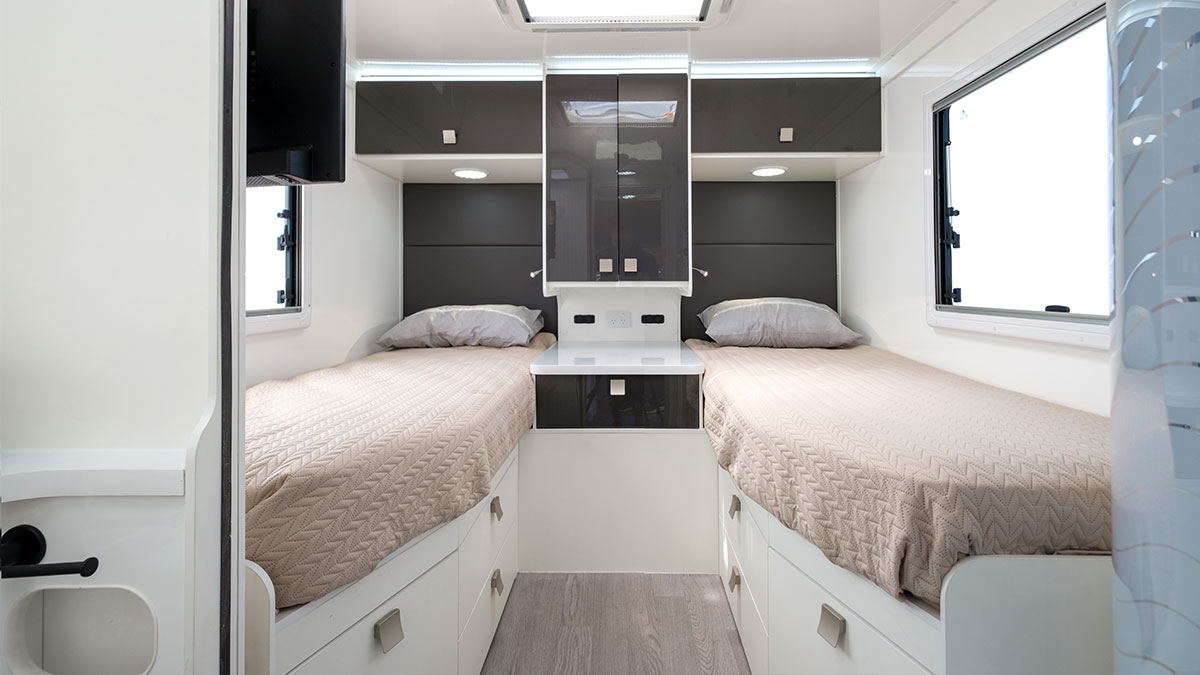

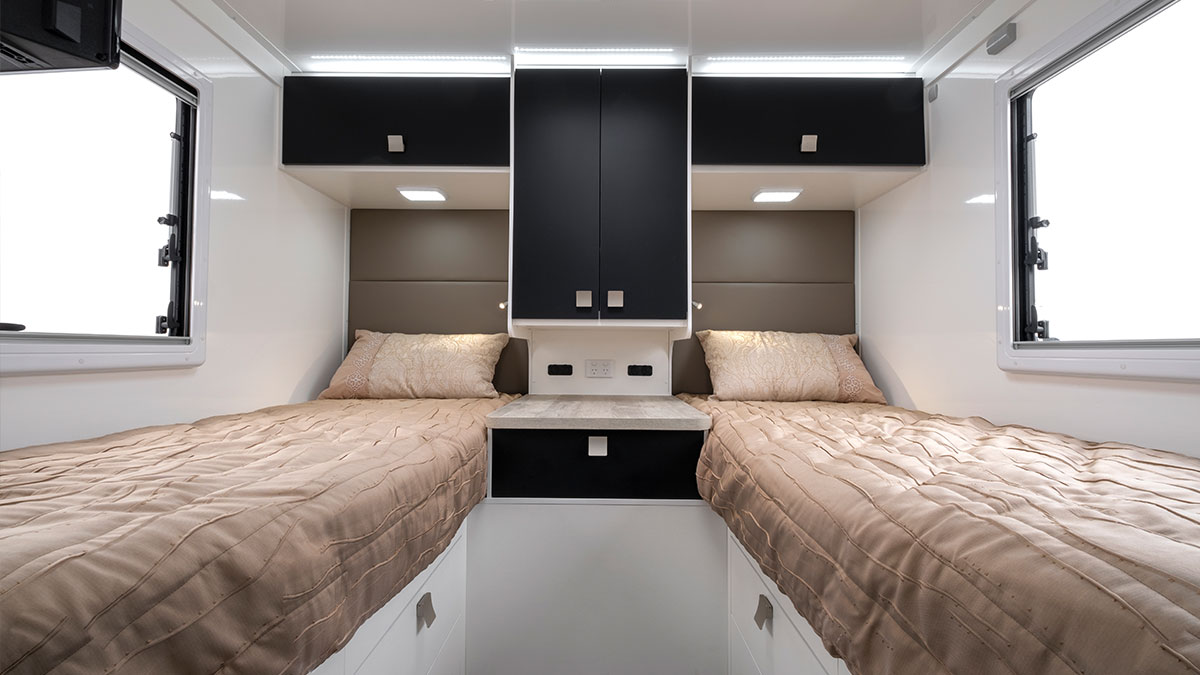

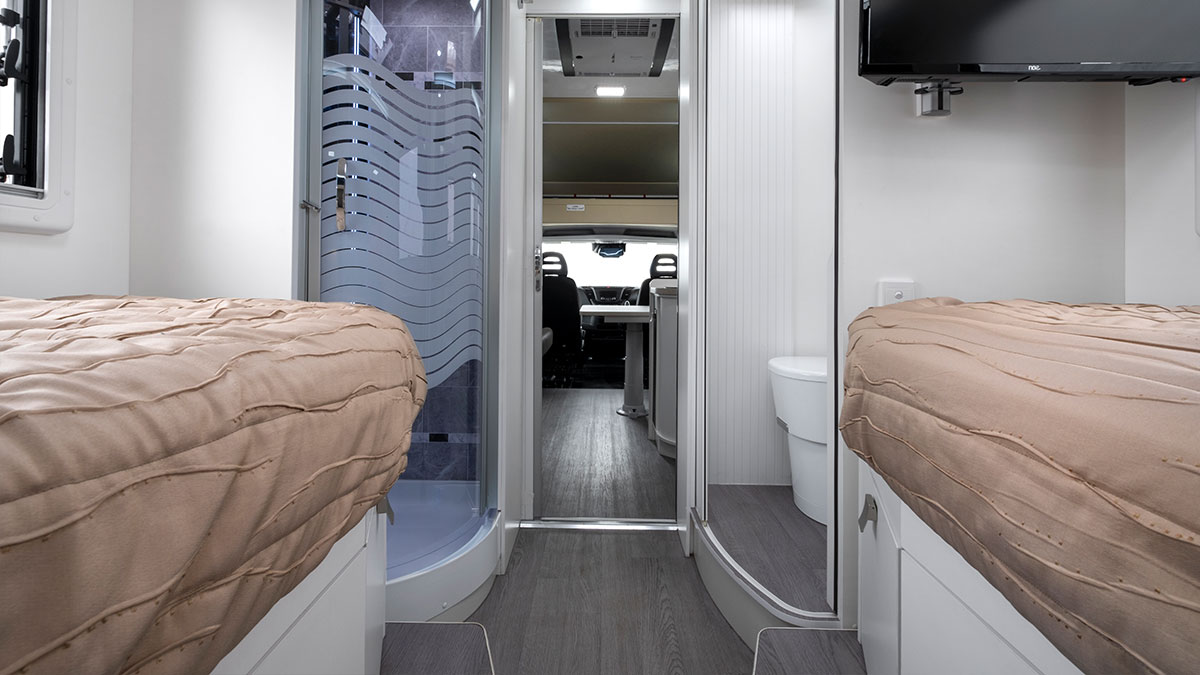

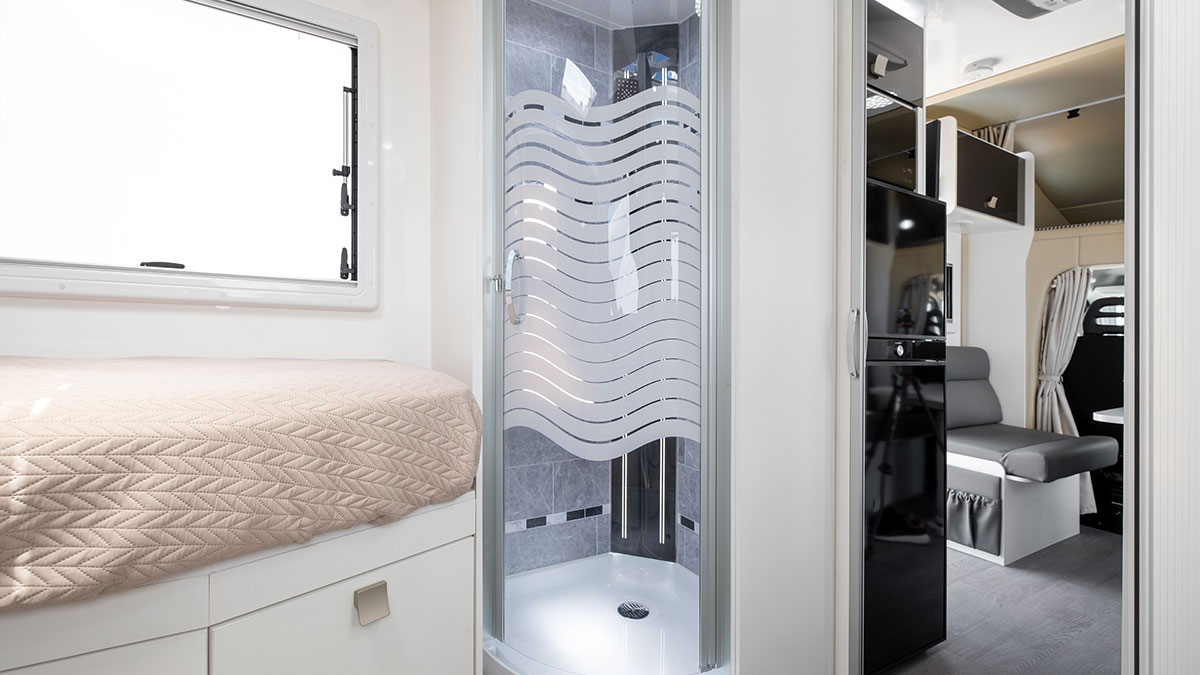

Note: A twin bed layout is available for the Iluka motorhome

EXTERNAL DIMENSIONS

OA Length (mm)	7,906 (25’11”)
OA Width (mm) excl mirrors	2,450 (8’0”)
OA Height- high luton (mm)	3,151 (10'4")
GVM Weight (kg)	4495 or 5200
Payload (kg)	663 or 1368

INTERNAL DIMENSIONS

Floor Plan Length (mm)	5295 (17’4”)
Floor Plan Width (mm)	2260 (7’5”)
Ceiling Height (mm)	2040 (6’8”)
Main Bed (cm) incl bolster	185x153

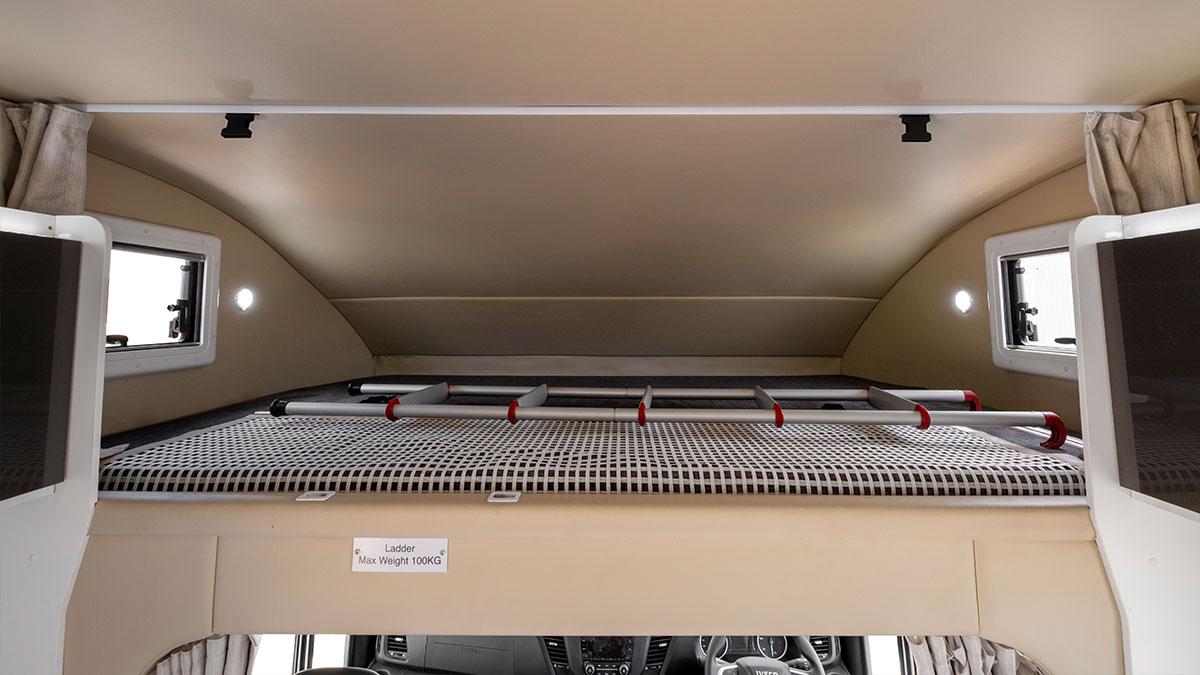

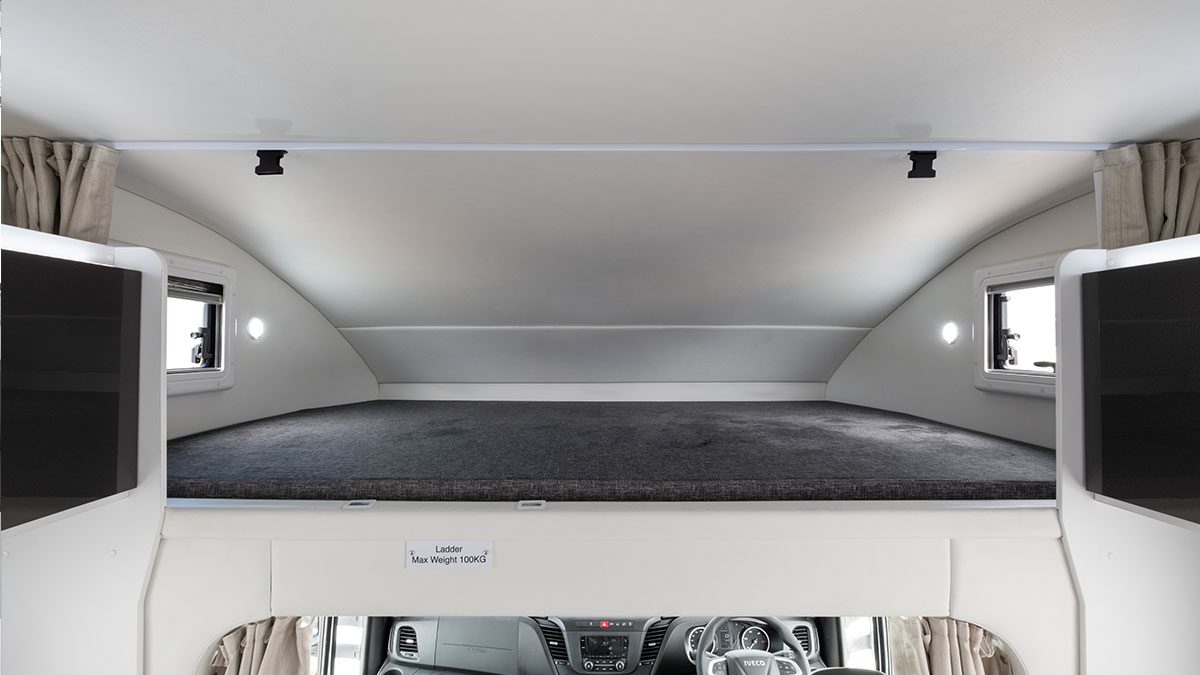

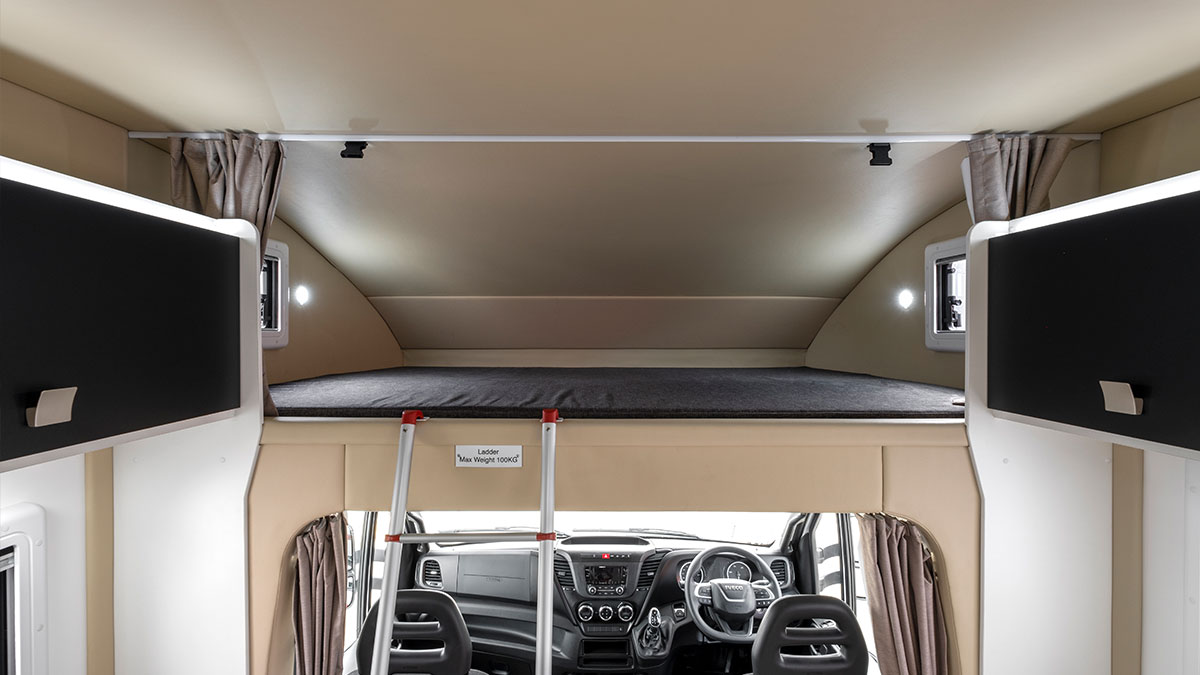

Bed 2 (cm) over drivers cabin	225x135

Features

VEHICLE

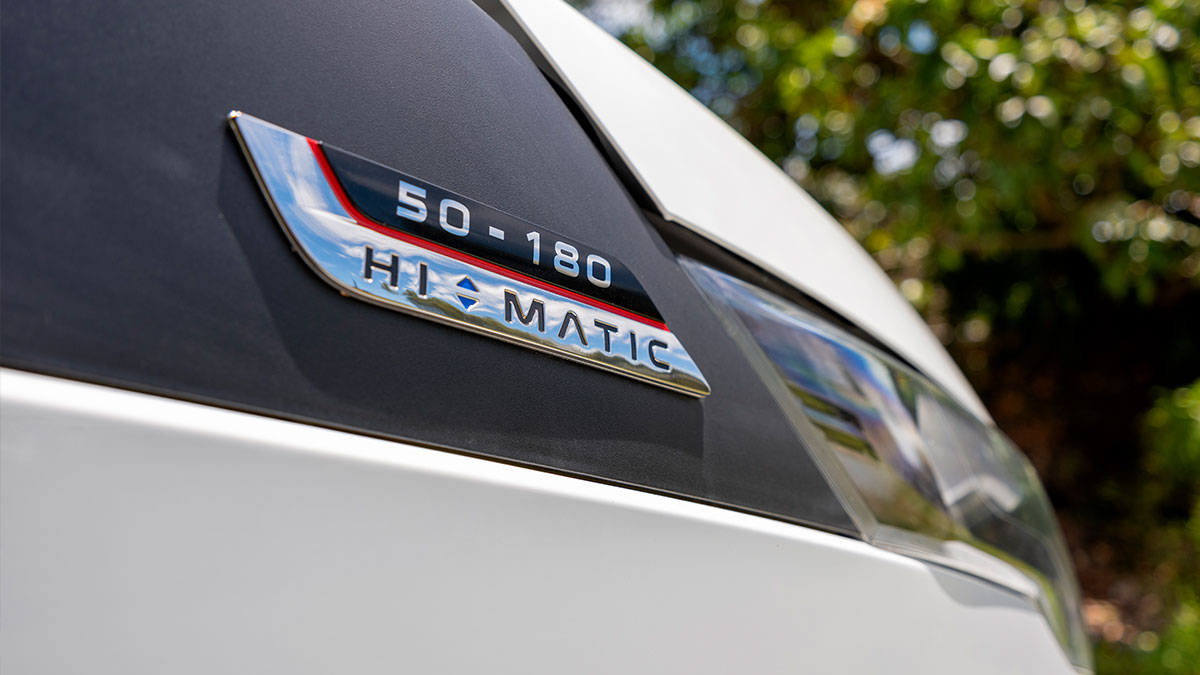

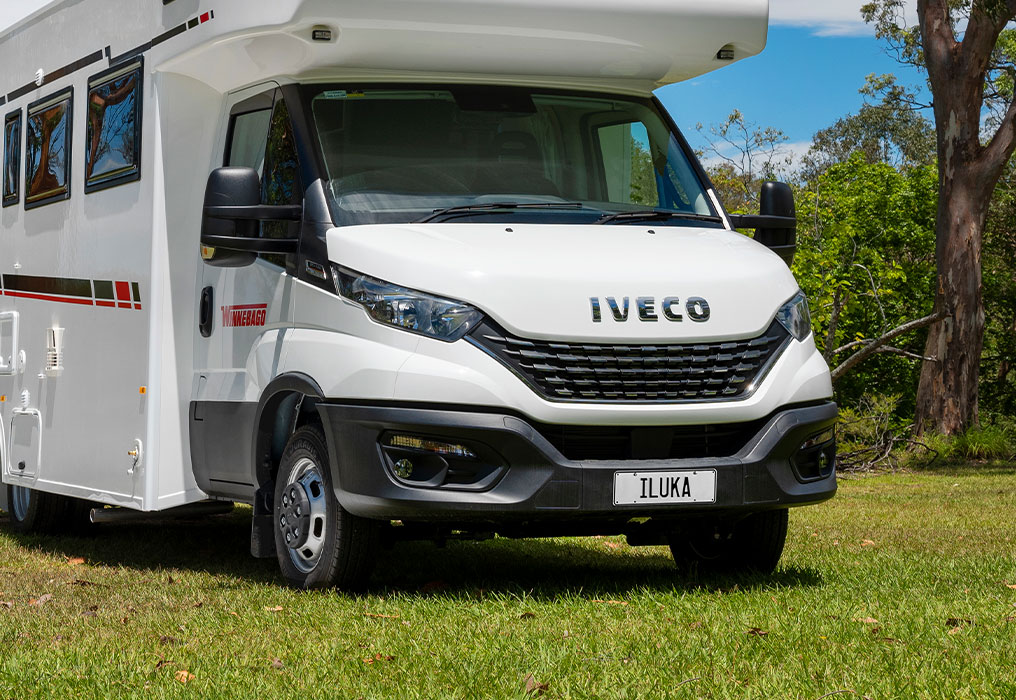

IVECO MY22 Daily Cab Chassis 50C-18
8 speed full automatic transmission
3 litre - 4 cylinder engine (euro 6)
Variable geometry turbocharger & intercooler
Max Power: 180hp/134kw @ 2900-3500rpm
Max Torque: 430Nm @ 1500-2600rpm
Fuel Tank: 100 litres (diesel)

CONSTRUCTION

Finish - Gel-coated interior and exterior walls
Roof & walls - Single piece structural composite panel
Floor - Single piece structural composite panel
Composite panels - Insulative foam core
Windows - Double glazed acrylic

APPLIANCES

Air conditioner, 2.4kW reverse cycle roof top

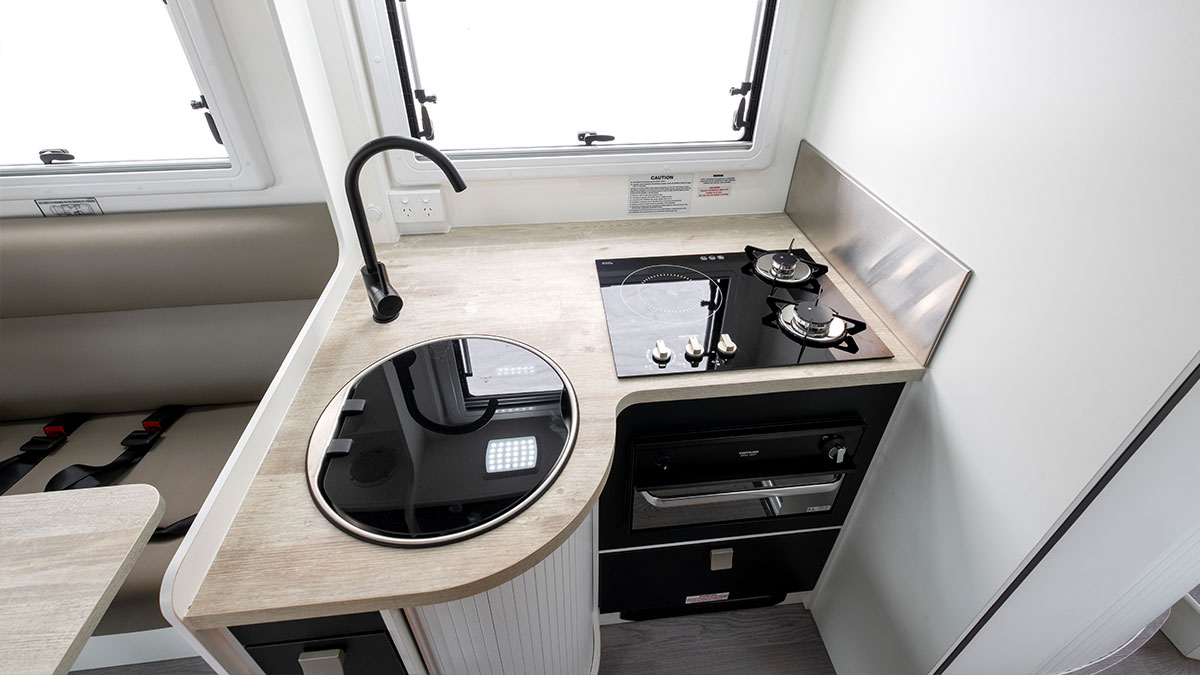

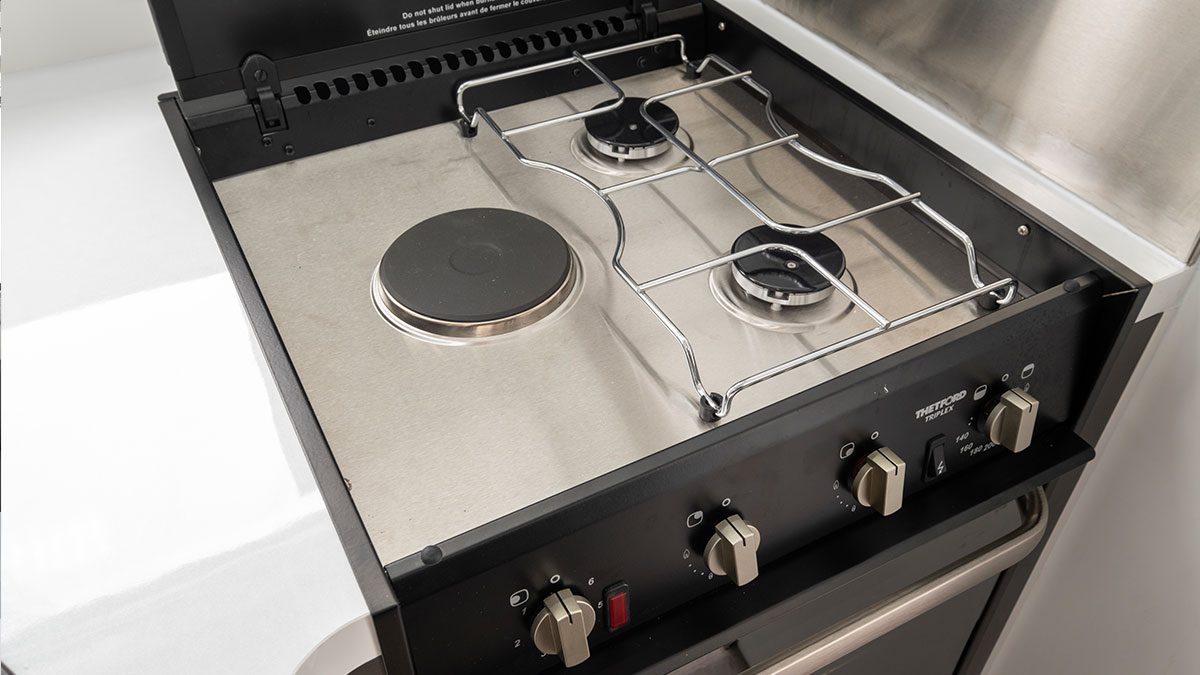

Cooktop, Thetford Topline Hybrid (1 induction / 2 gas)
Grill, Spinflo Mk3 (gas)
Fridge 188L absorption (12V / 240V / Gas)
Water Heater 14L (Gas / 240V)
Microwave 24L

POWER & ELECTRICS

Reversing camera with interior mirror display
House battery 1x 100Ah deep cycle, fully sealed
Battery charger 30amp, 12V multi-stage
Solar, 1x 180W panel with regulator
Stereo Player with Bluetooth connectivity
Power inlet & outlet 240V
Power outlet 12volt & USB charge outlet

EXTERNAL FEATURES

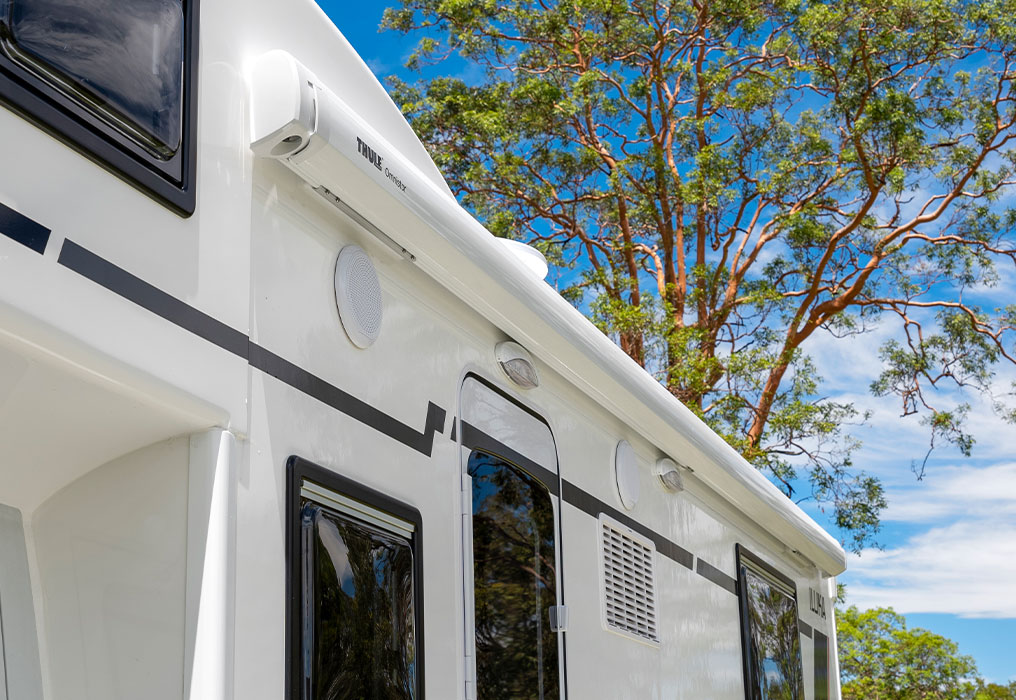

Awning, 4.9m (16’) windout cassette style
Antenna, King Jack directional over-the-air HDTV

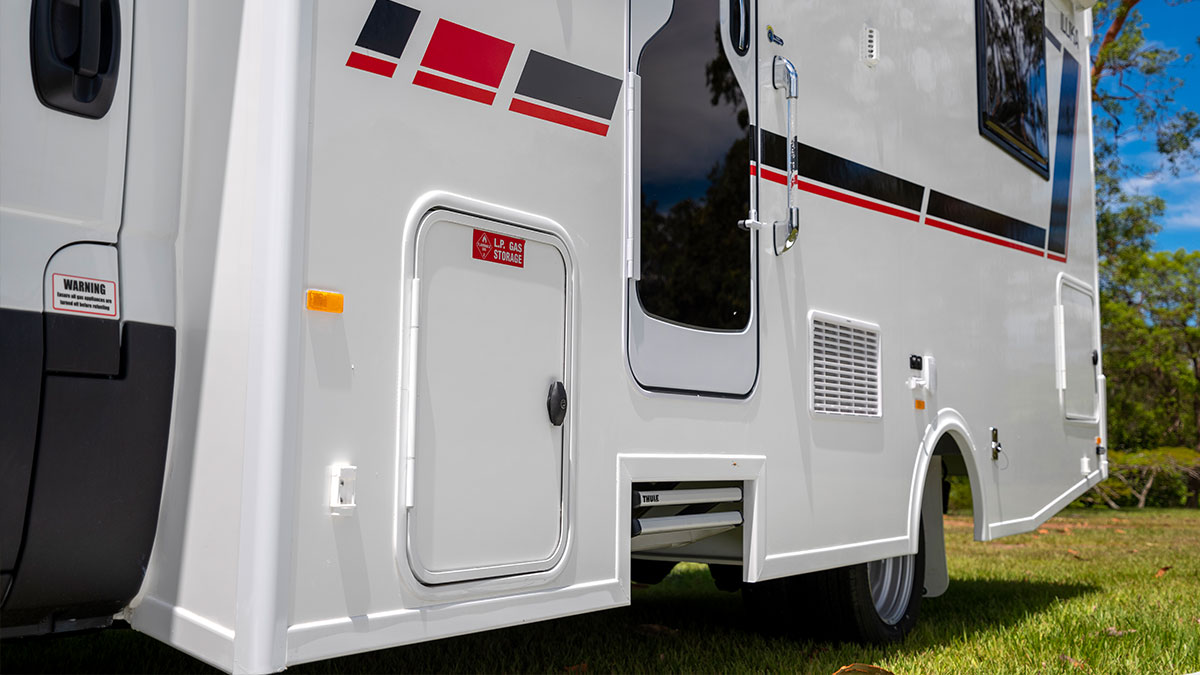

Gas cylinder, 2x 9kg
BBQ gas bayonet fitting
Entry door, secure 4 point locking and safety mesh
Roof hatch to bedroom with LED lights
Roof hatches with 12V fan to shower & ensuite
Entry grab rail with LED illumination
Storage locker, tunnel boot 1050L
Storage locker, driver side 100L
Decals, ‘Iluka’ stylised design

KITCHEN & PLUMBING

Fresh water, 90 litre storage
Grey water, 90 litre storage
Water level monitor
Shower external, hot & cold supply
Pressurised town water connection

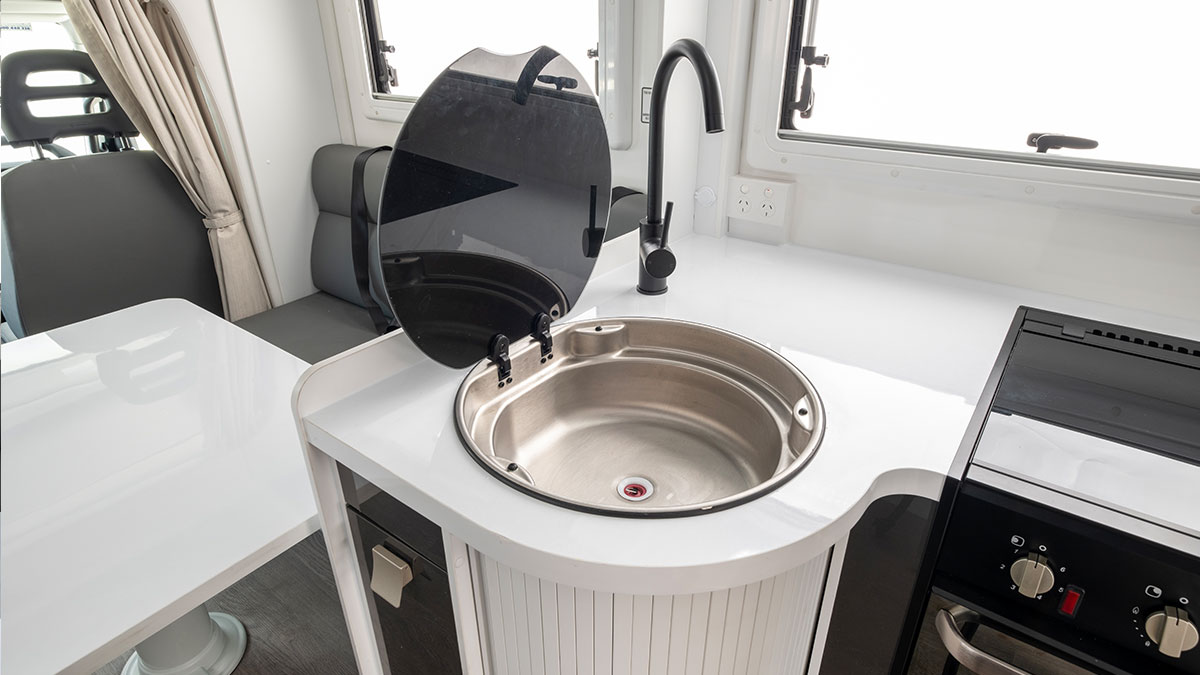

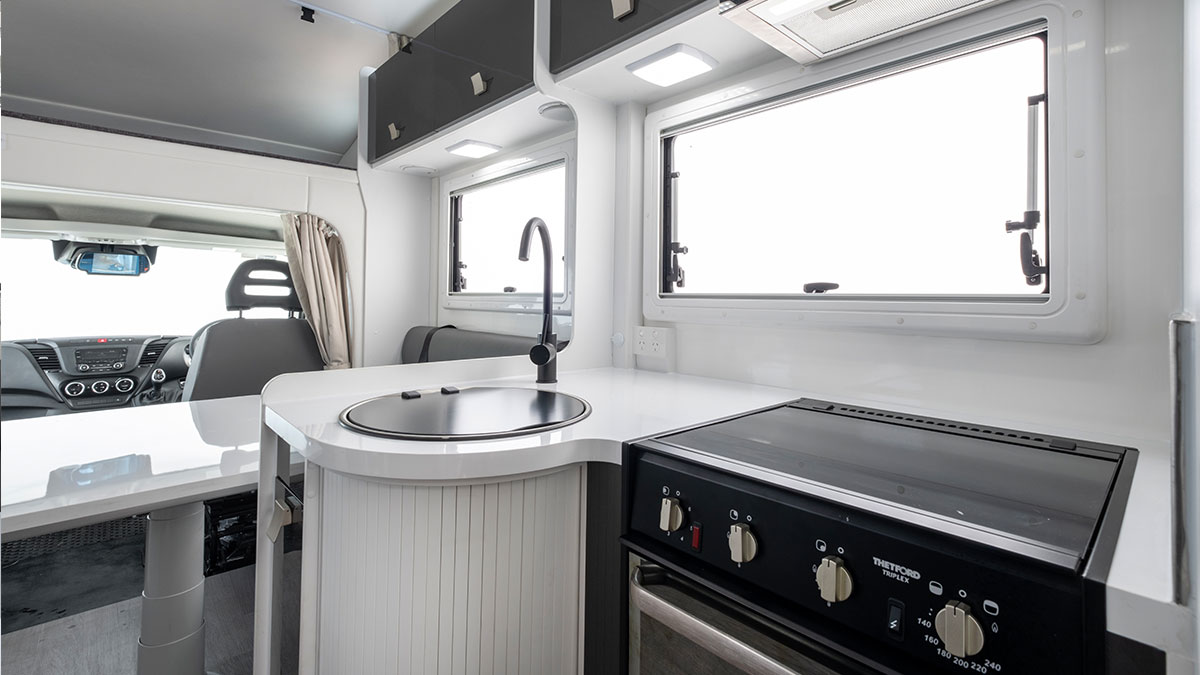

Kitchen sink with hinged glass cover & flickmixer
Laminated plywood benchtops
Kitchen cabinets and drawers

LIVING AREA

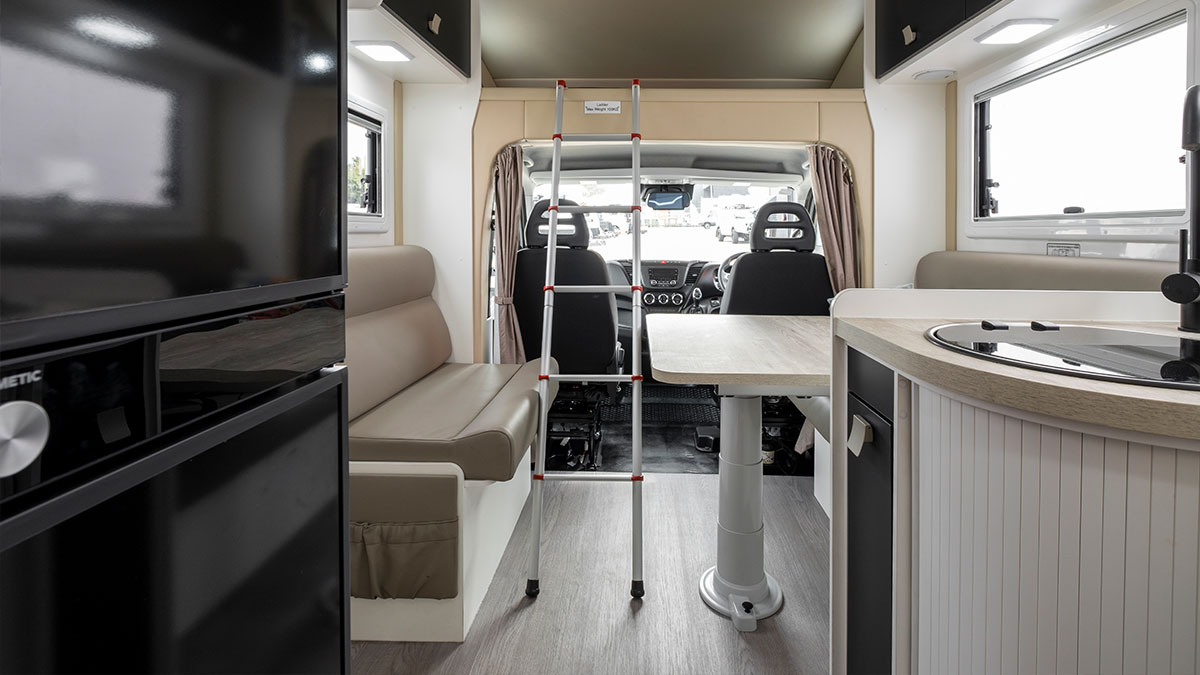

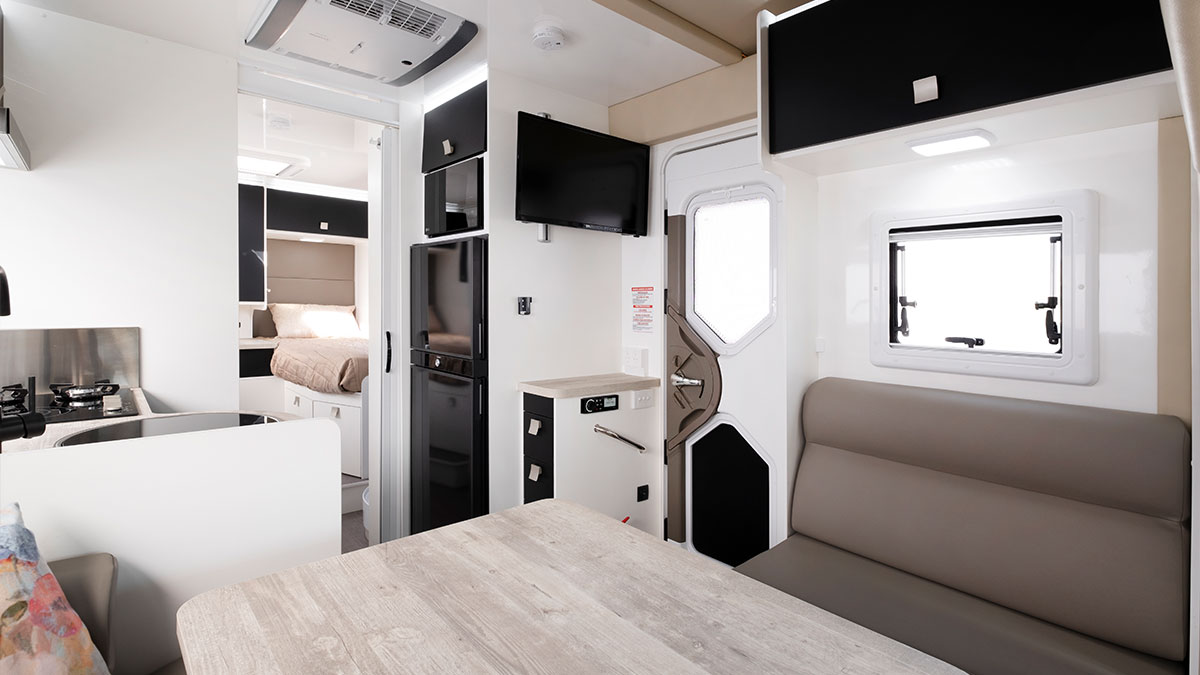

Forward lounge/dinette with adjustable table
Island bed to rear with pillowtop mattress
Television x2, 28” (70cm) 12V HD Smart LED DVD/TV

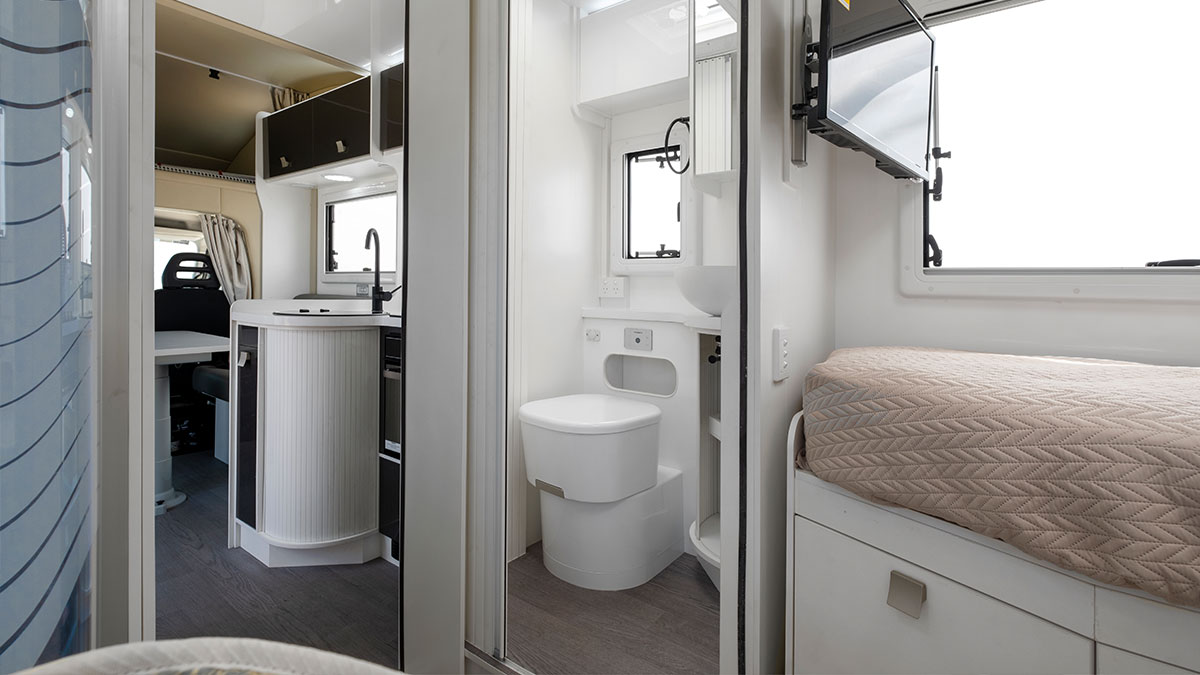

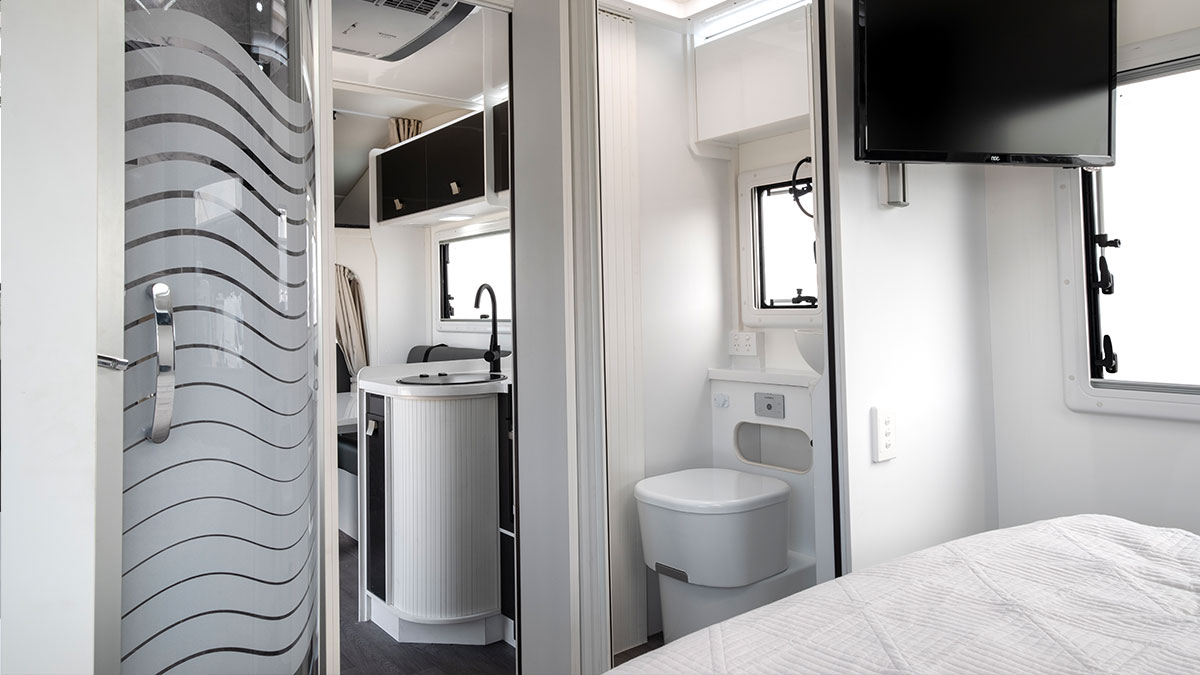

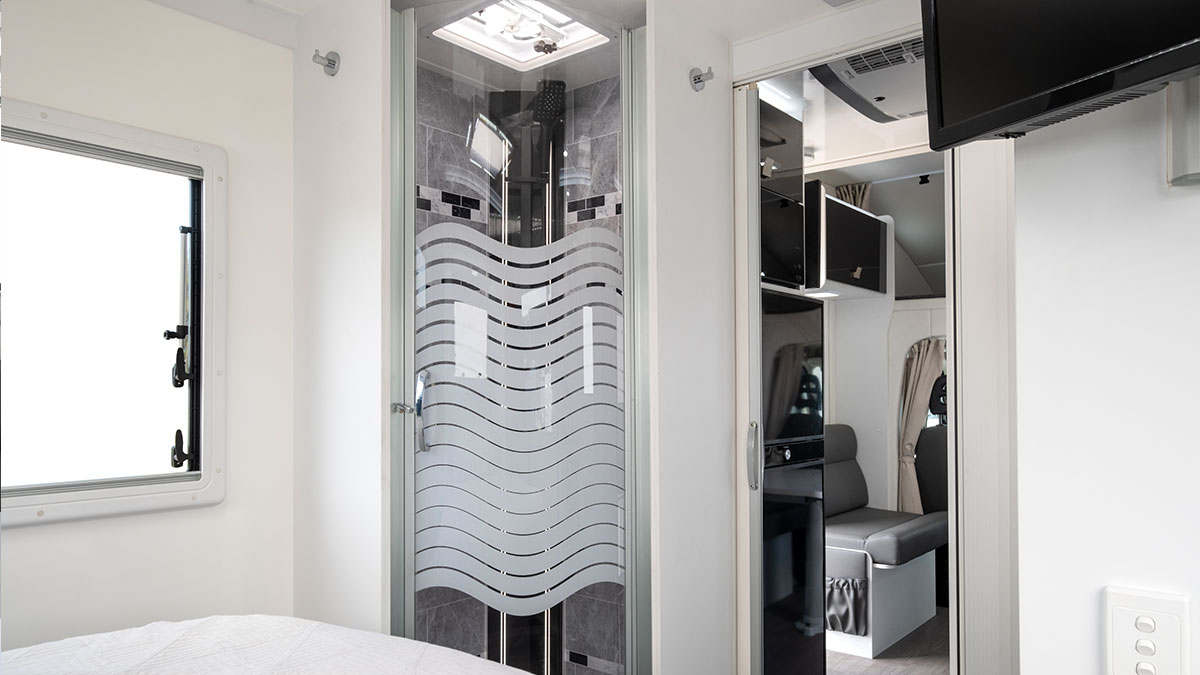

ENSUITE

Vanity with countertop basin & flickmixer
Mirrored cabinet to wall above vanity

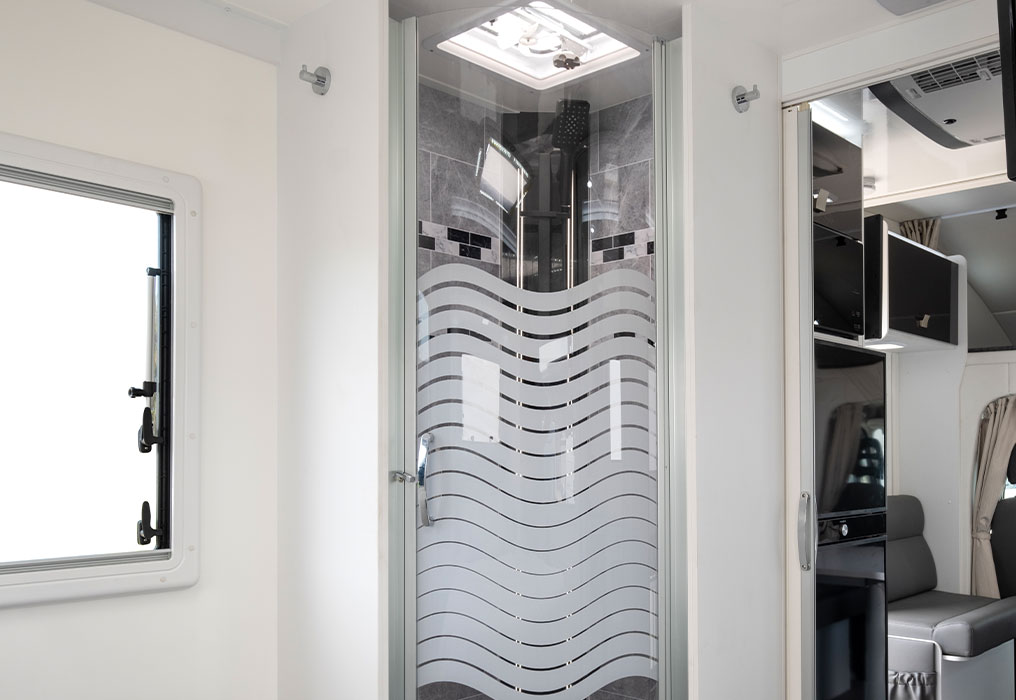

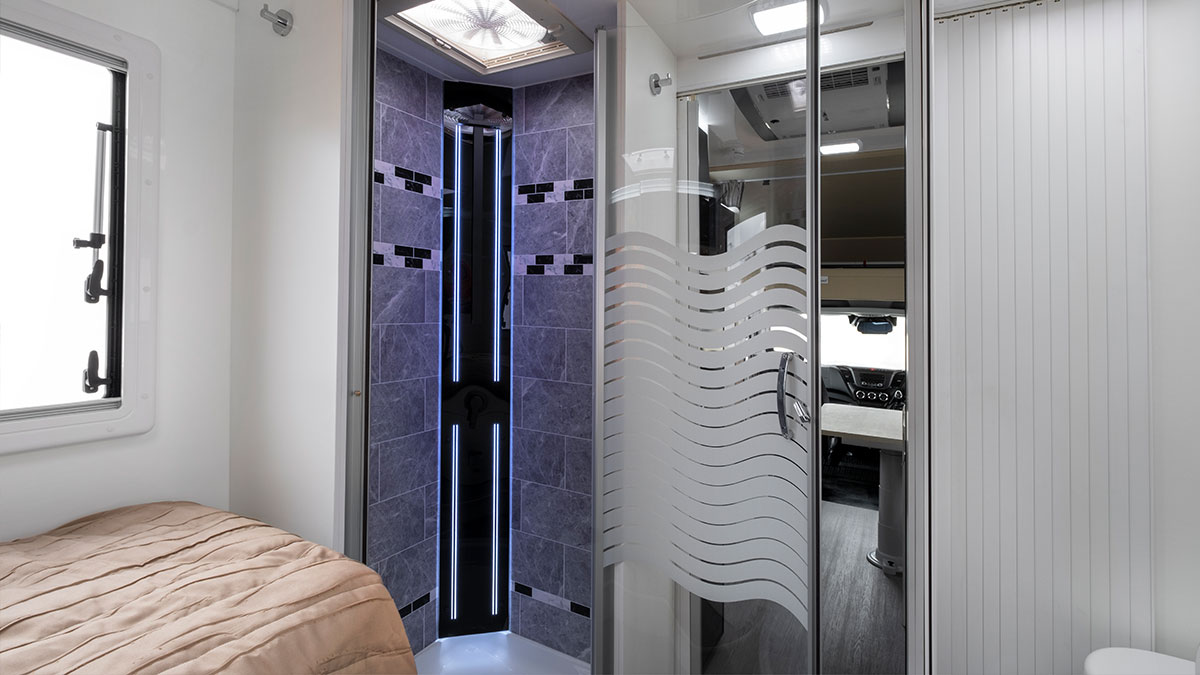

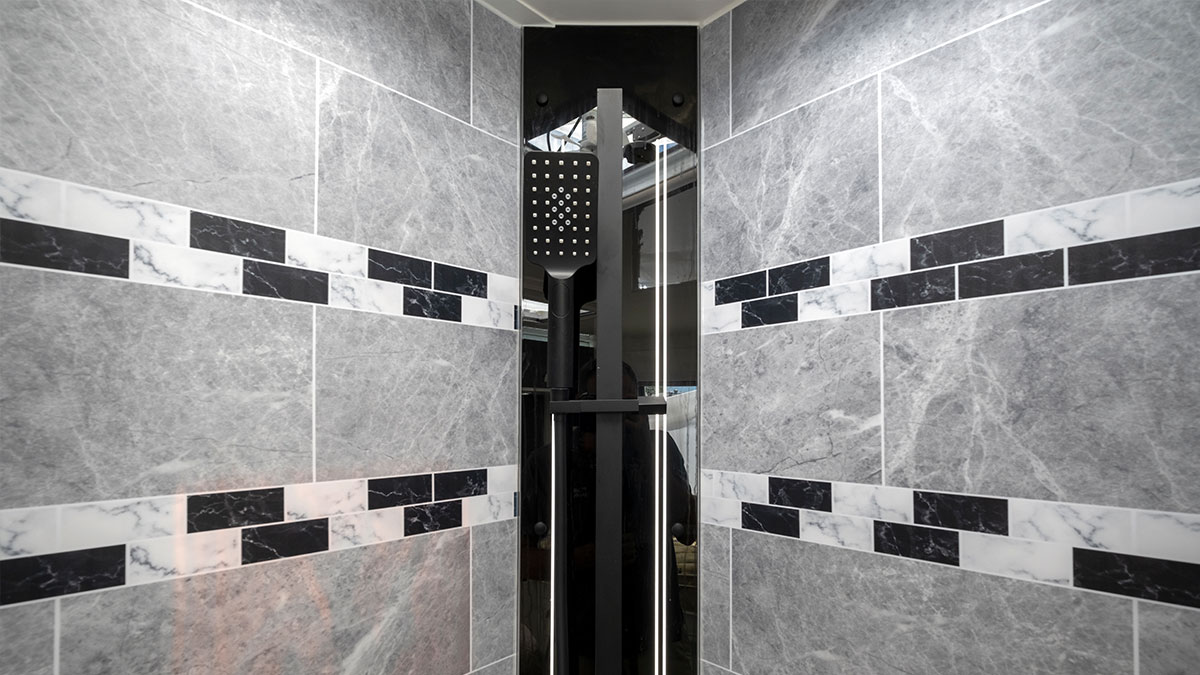

Fully enclosed shower with curved door & feature lighting

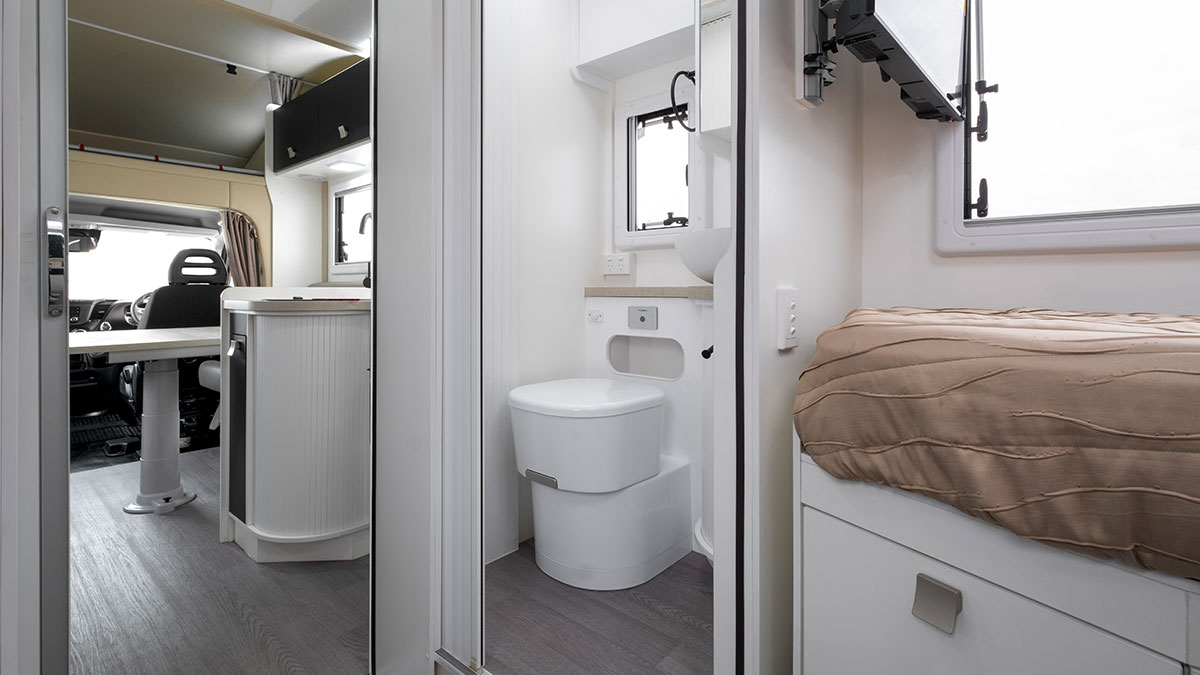

Swivel cassette toilet 16L with electric flush

Rev# 011224
