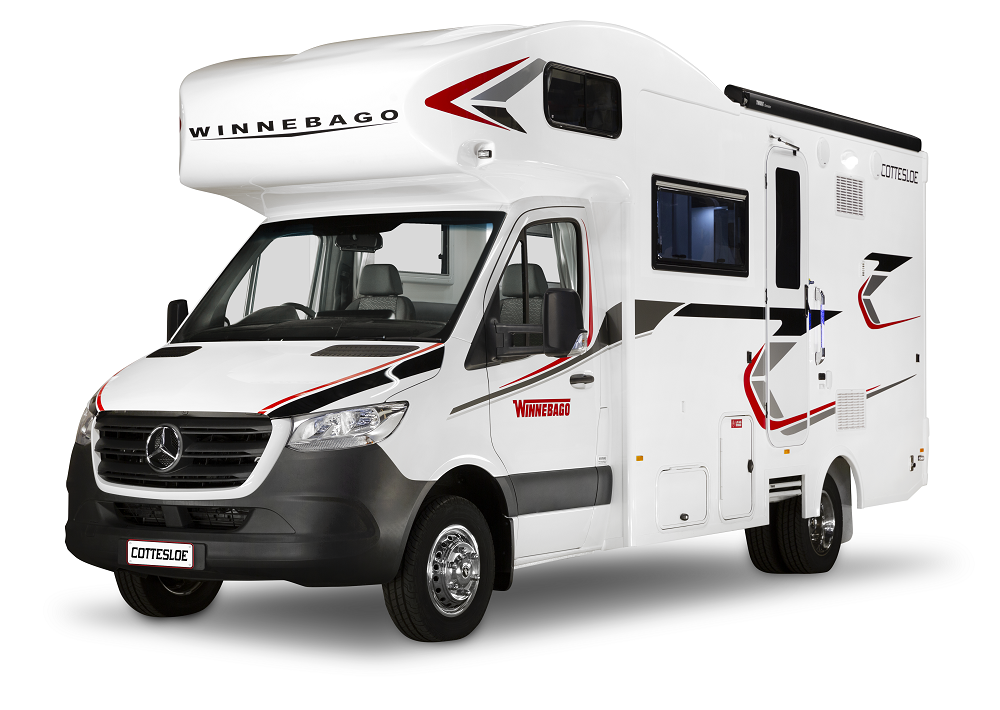

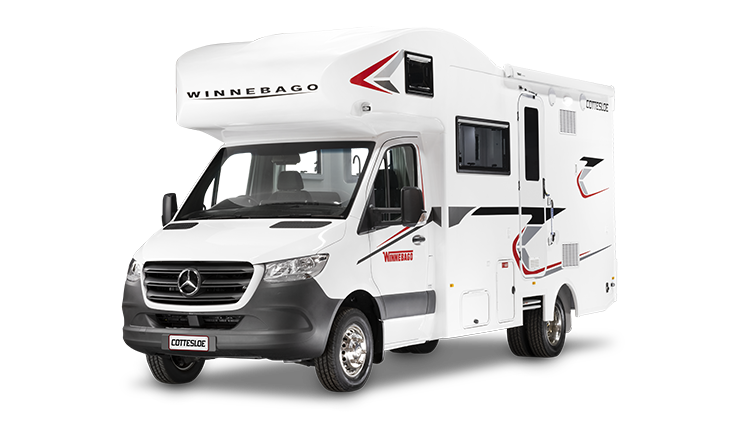

Winnebago Cottesloe

REPRESENTING QUALITY BUILD & SUPERIOR FUNCTIONALITY WITH ITS INTELLIGENT DESIGN, THE COTTESLOE HAS BEEN CRAFTED FOR ADVENTURE.

No matter your intended style of travel, this dual-purpose layout is an attractive option as it allows you to optimise your space for day & night time living at the touch of a button. Travellers will also enjoy the full-size bathroom at the rear of the RV and ample storage plus cosy couches to kick back & relax on after a long day of adventuring! For the nomads who love the ease of adventure that motorhomes offer, the compact size of the Cottesloe will leave you navigating city scenes without a worry. Standard inclusions such as the reverse camera are all inclusive in the Mercedes experience.

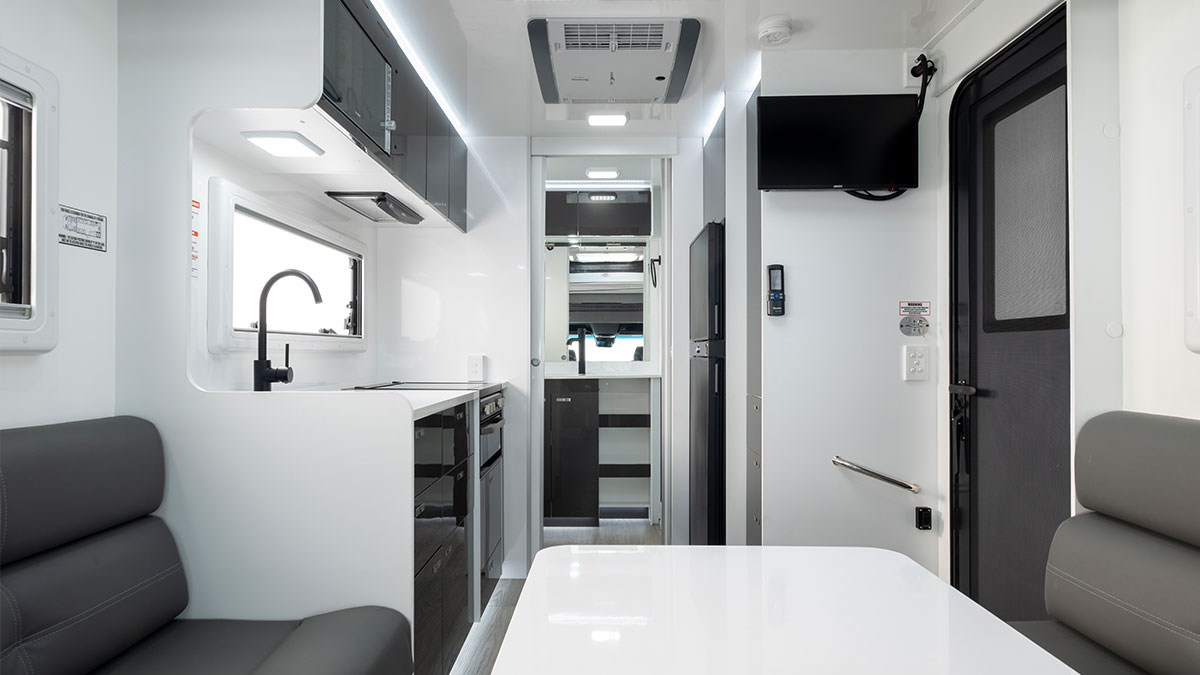

ENTERTAINMENT AREA

Your extensive range of features and your dual purpose layout make it easy to entertain guests

REVERSING CAMERA

Your full colour reversing camera with 5” LCD monitor allows you to manoeuvre your motorhome with confidence

LED LIGHTING

Illuminate the beauty of your motorhome with LED lighting installed throughout

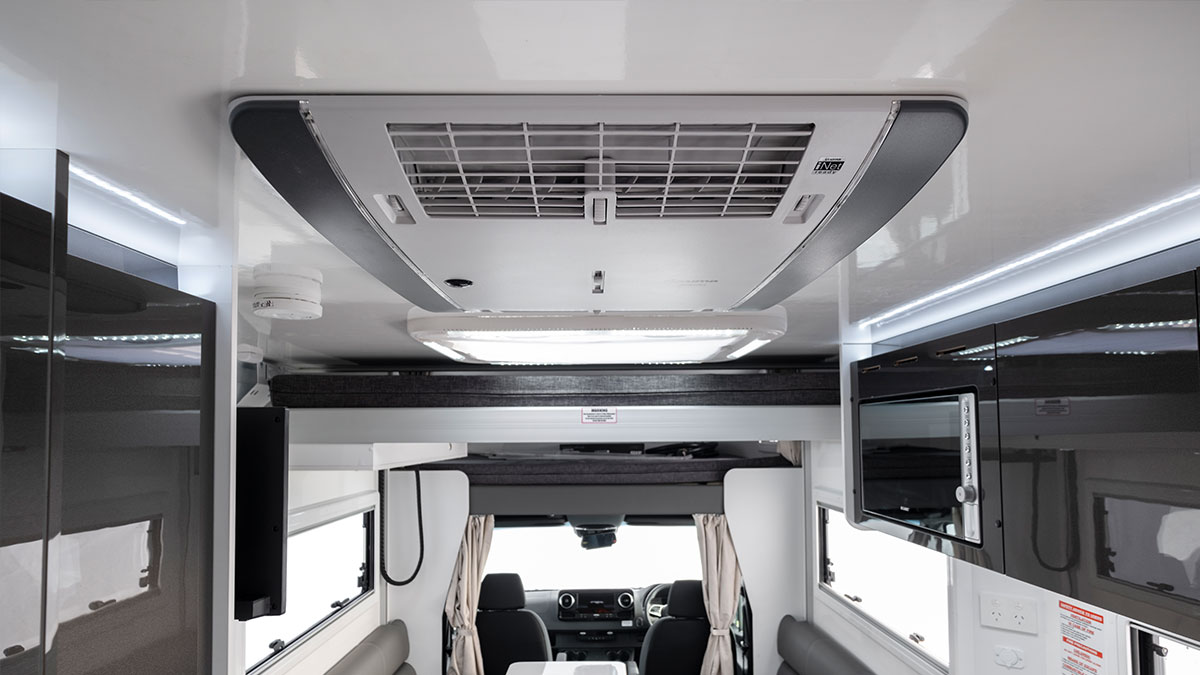

AIR CONDITIONING

2.4 kW Air Conditioner 240V reverse cycle ensures you maintain the perfect temperature all year round

Palatte A - "Metallic Grey"

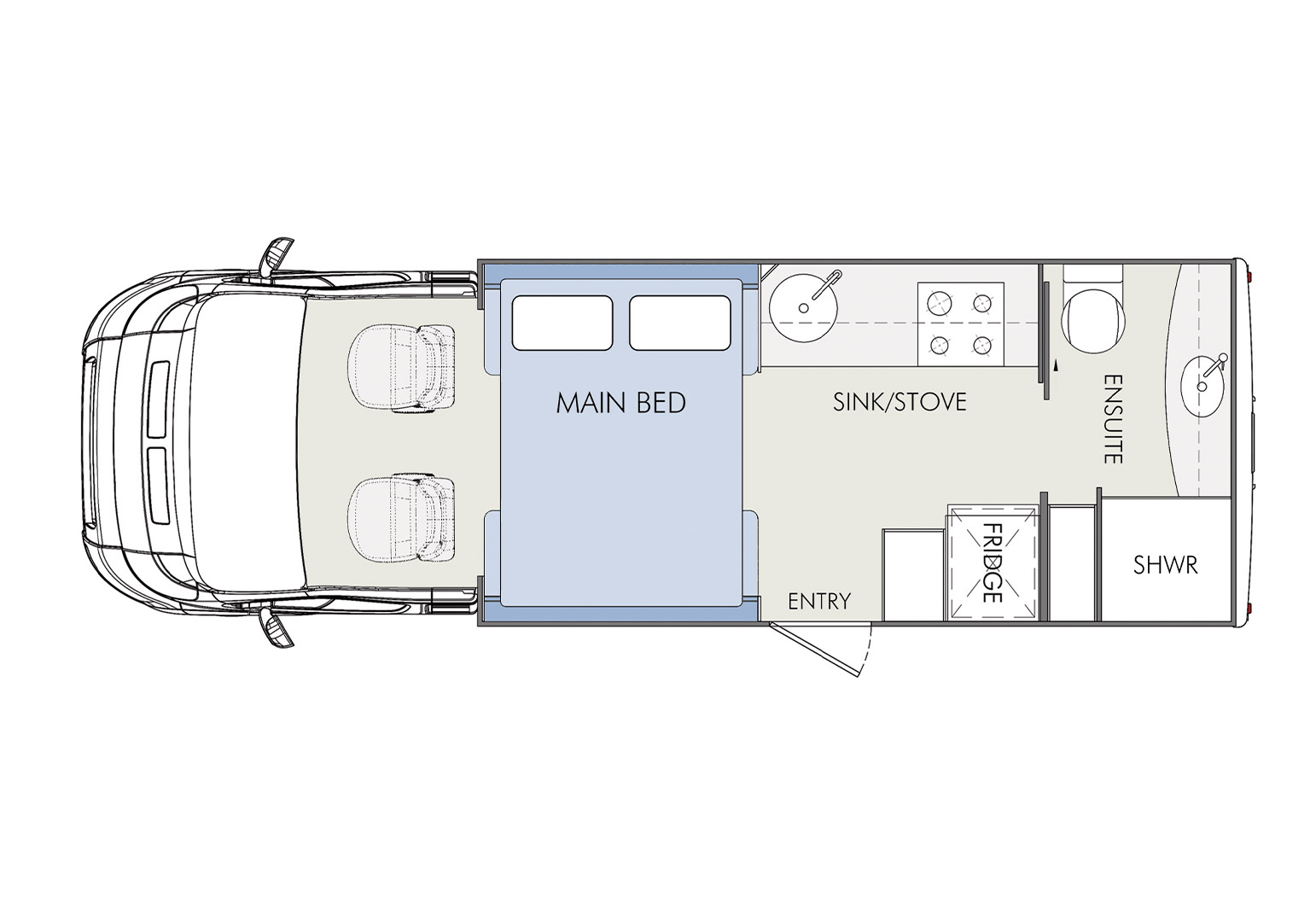

Layout

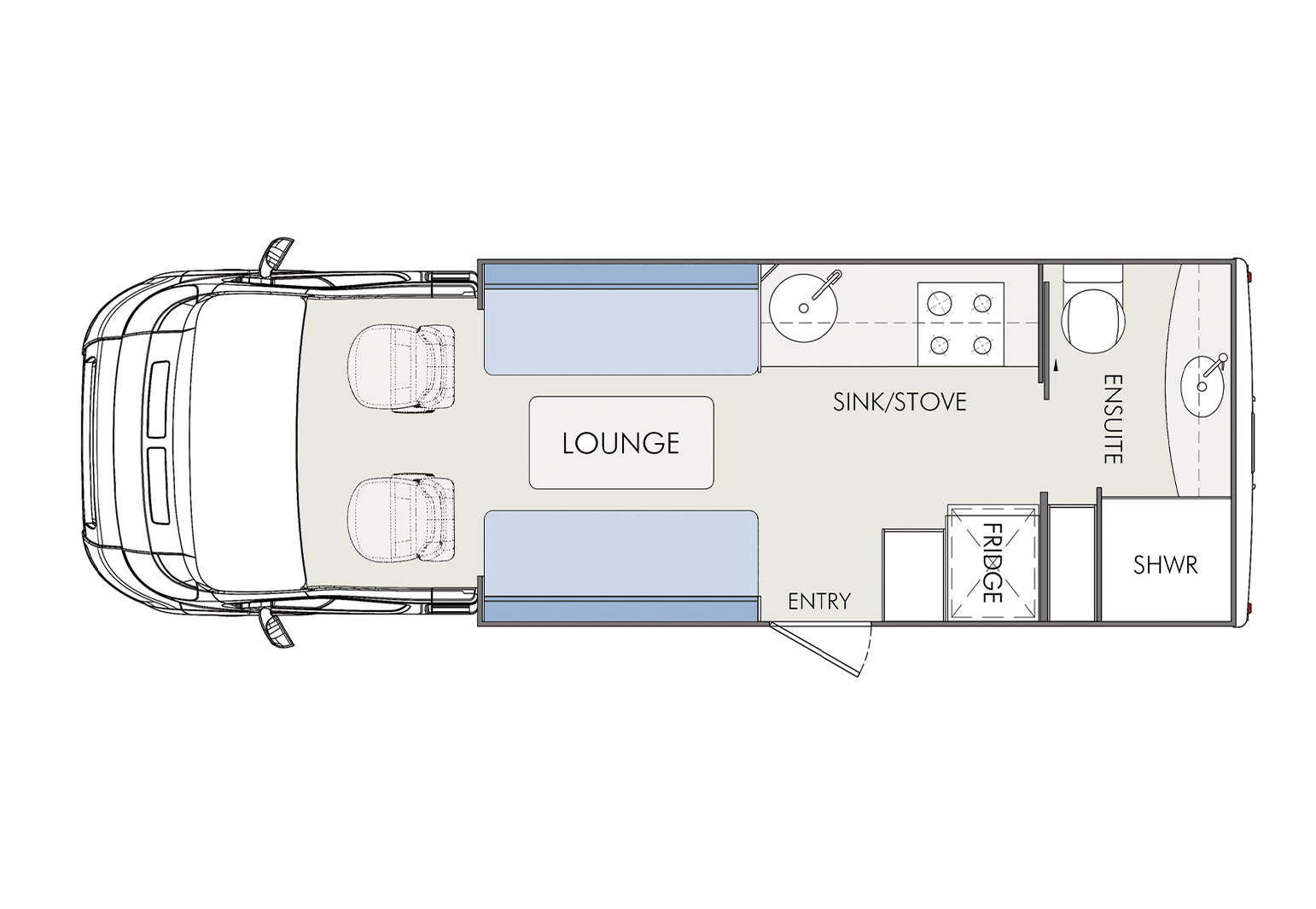

Winnebago Cottesloe Floorplan, Winnebago Cottesloe, Winnebago Daytime layout, Winnebago nighttime layout

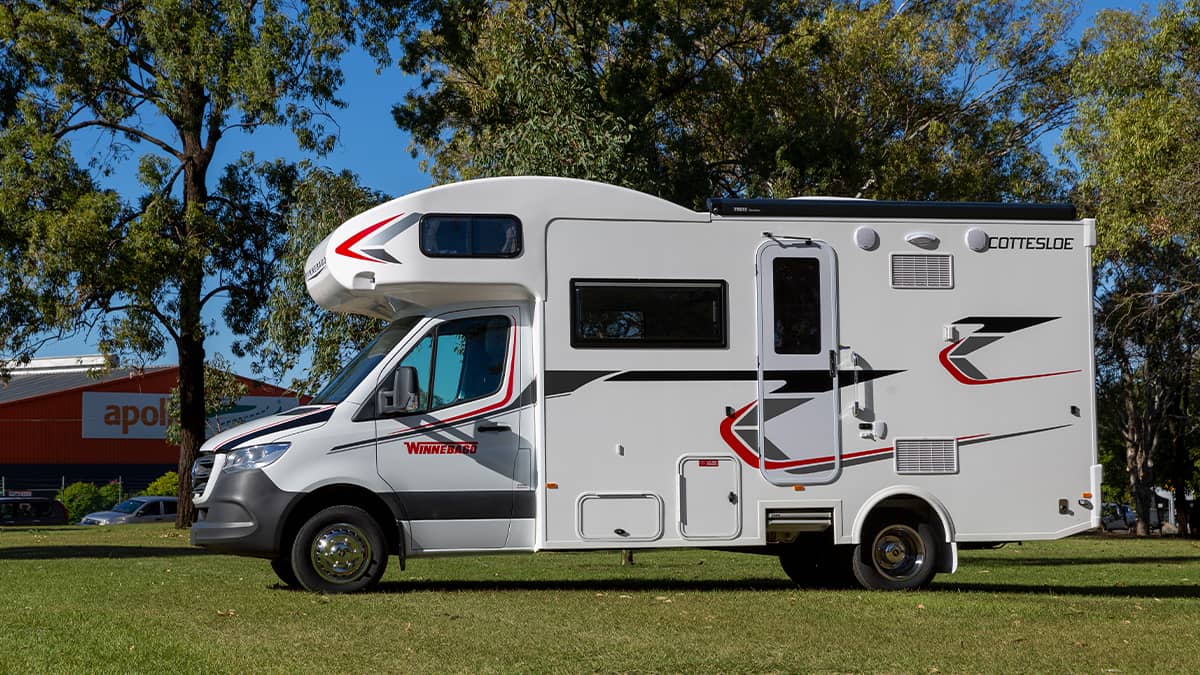

EXTERNAL DIMENSIONS

OA Length (mm)	7,050 (23'2")
OA Width (mm) excl mirrors	2,330 (7'8")
OA Height (mm)	3,230 (10’7”)
GVM Weight (kg)	4490
Payload (kg)	830

INTERNAL DIMENSIONS

Floor Plan Length (mm)	4,590 (15’1”)
Floor Plan Width (mm)	2,135 (7’0”)
Ceiling Height (mm)	2,025 (6’8”)
Bed (cm) electric bed lift**	185x134

*Weights & measurements are indicitave only

Features

VEHICLE

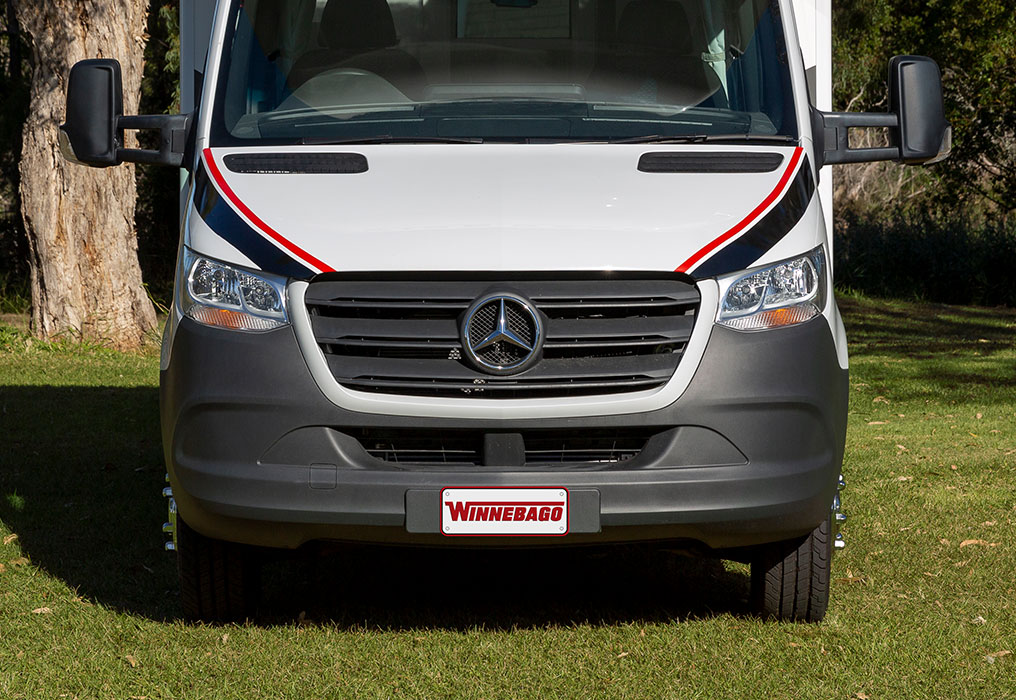

Mercedes New Sprinter (VS30) RWD 516 LWB
7 speed full automatic transmission
2.2 litre - 4 cylinder engine
Intercooled (2-stage) turbo diesel
Max Power: 163hp/120kw @ 3800rpm
Max Torque: 360Nm @ 1400-2400rpm
Fuel Tank: 71 litres (diesel)

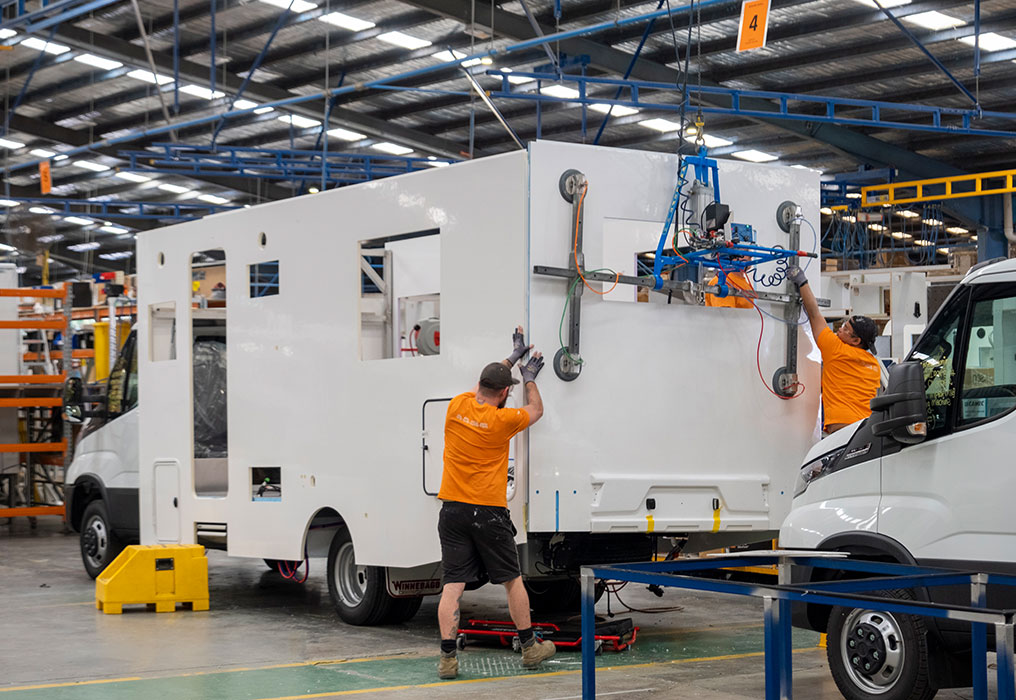

CONSTRUCTION

Finish - Gel-coated interior and exterior walls
Roof & walls - Single piece structural composite panel
Floor - Single piece structural composite panel
Composite panels - Insulative foam core
Windows - Double glazed acrylic

APPLIANCES

Air conditioner, 2.4kW reverse cycle roof top

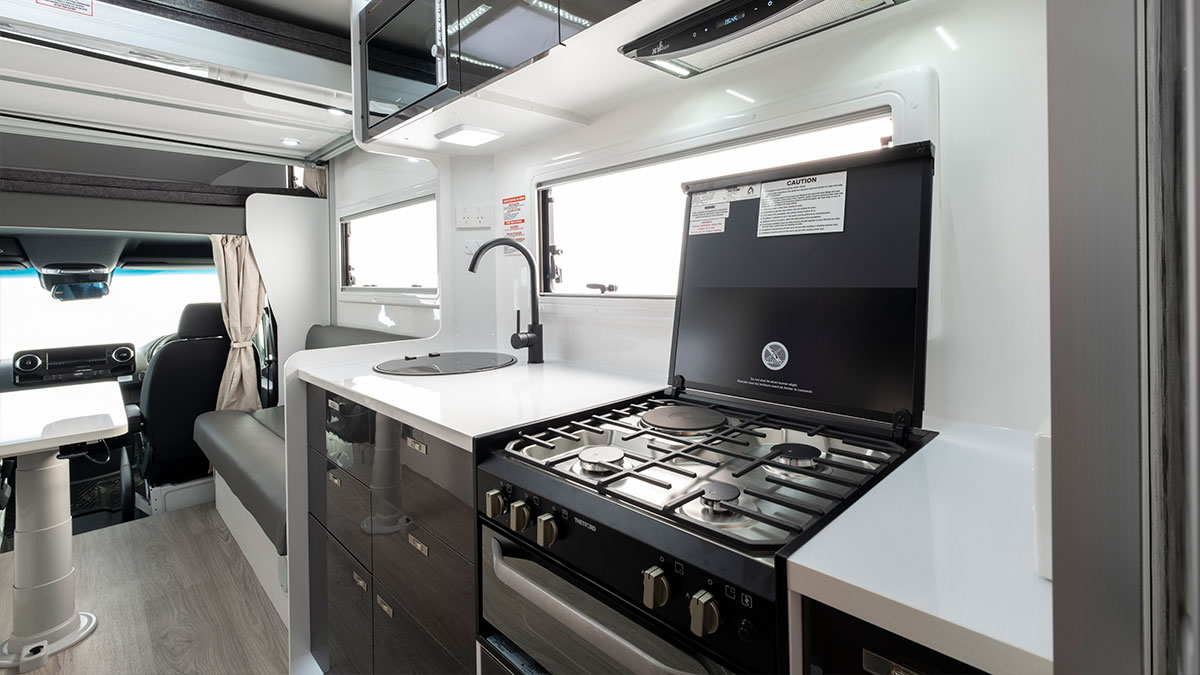

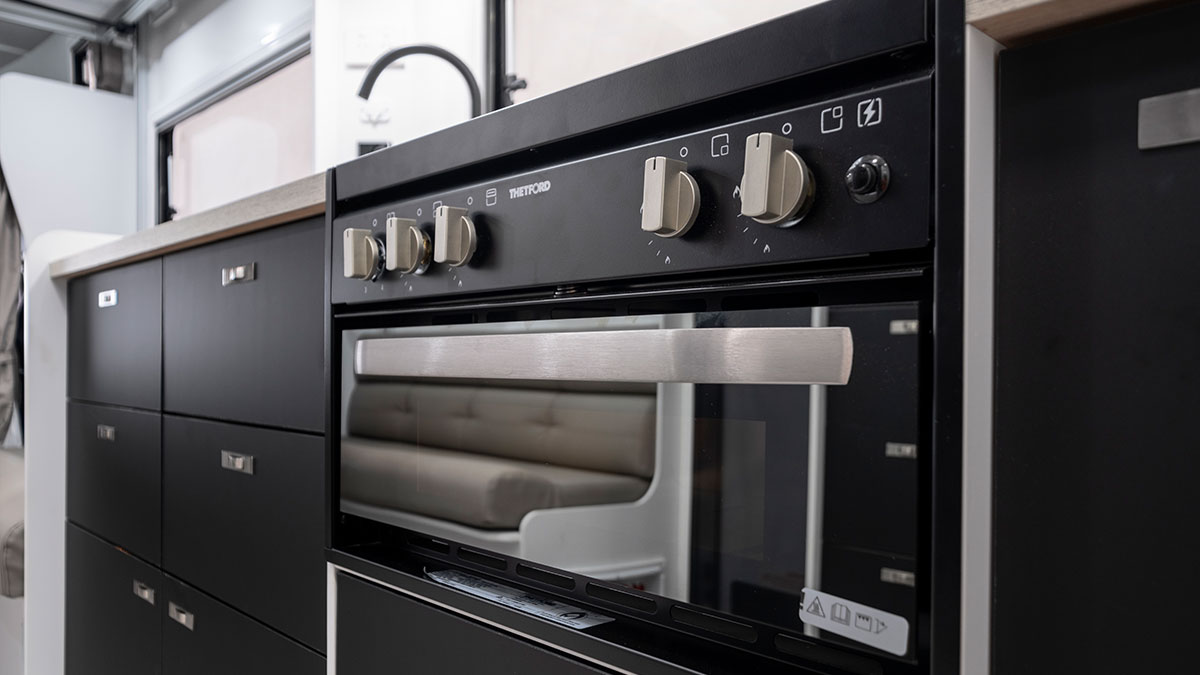

Cooker with grill (1 electric / 3 gas burners)
Fridge 188L absorption (12V / 240V / Gas)
Water Heater 20L (Gas / 240V)

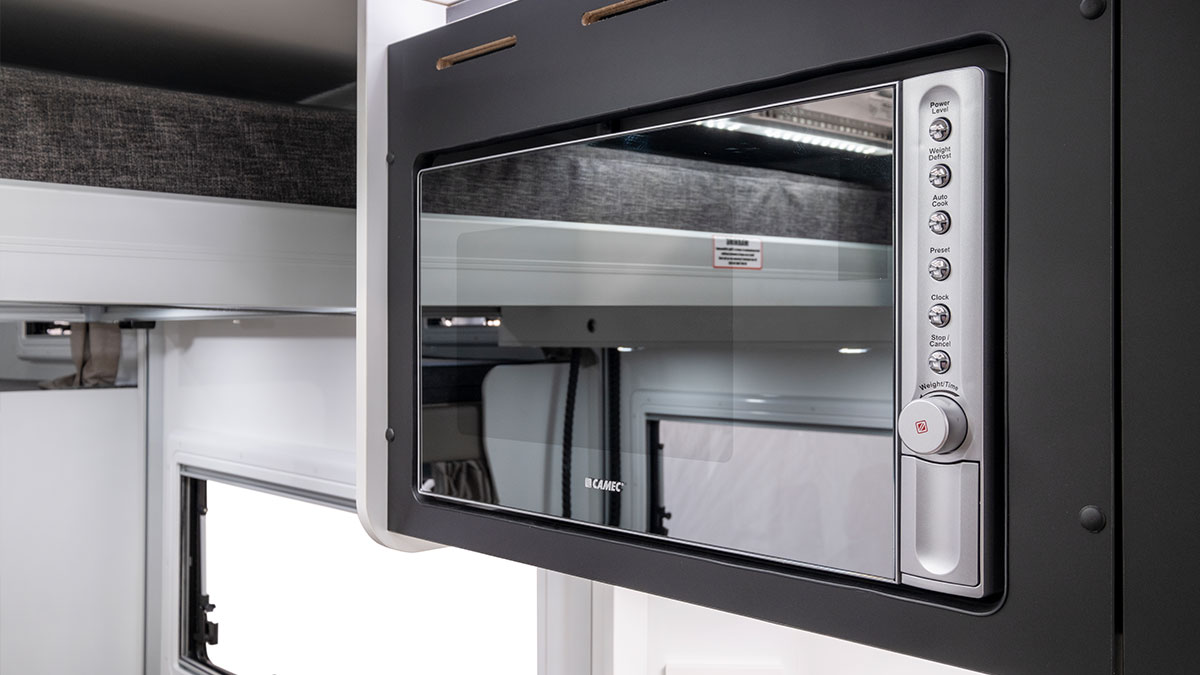

Microwave 25L

POWER & ELECTRICS

Reversing camera with colour monitor
House battery 1x 100Ah deep cycle, fully sealed
Battery charger 30amp, 12V multi-stage
Solar, 180W panel with regulator
Stereo Player with Bluetooth connectivity
Power inlet & outlet 240V
Power outlet 12volt & USB charge outlet

EXTERNAL FEATURES

Awning, 3m windout style
Antenna, King Jack directional over-the-air HDTV
Gas cylinder, 2x 4.5kg
BBQ gas bayonet fitting
Entry door with hinged flyscreen door
Roof hatch to living area with LED lights
Entry grab rail with LED illumination
Storage lockers x2, driver side 98L each
Decals, ‘Cottesloe’ stylised design

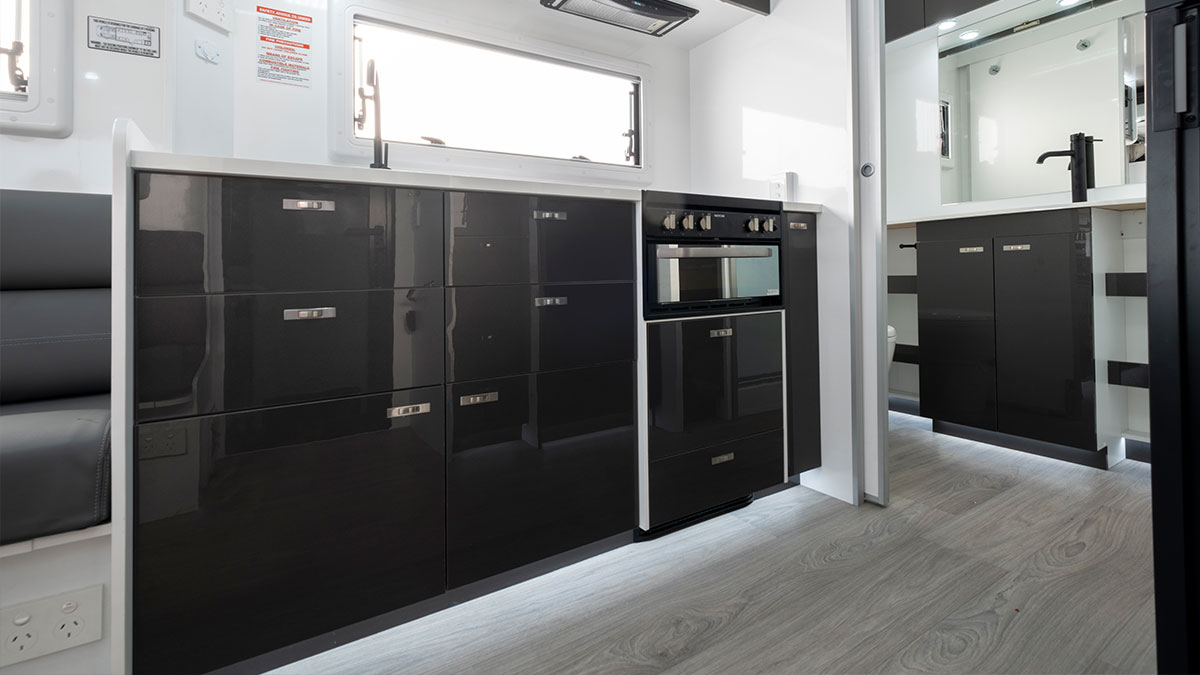

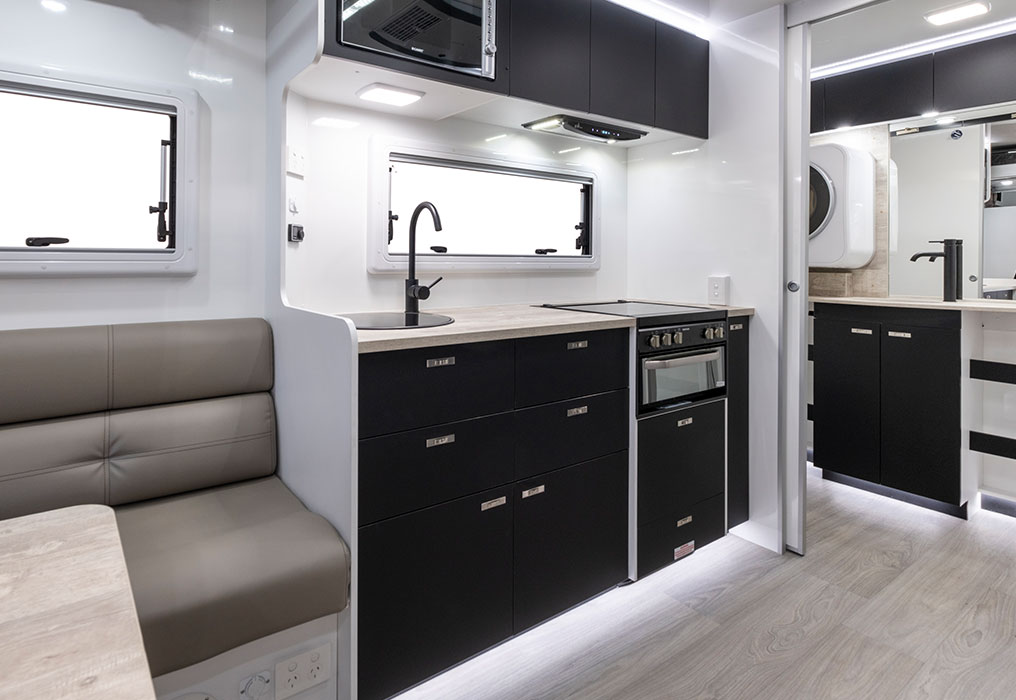

KITCHEN & PLUMBING

Fresh water, 90 litre storage
Grey water, 90 litre storage
Water level monitor
Shower external, hot & cold supply
Pressurised town water connection

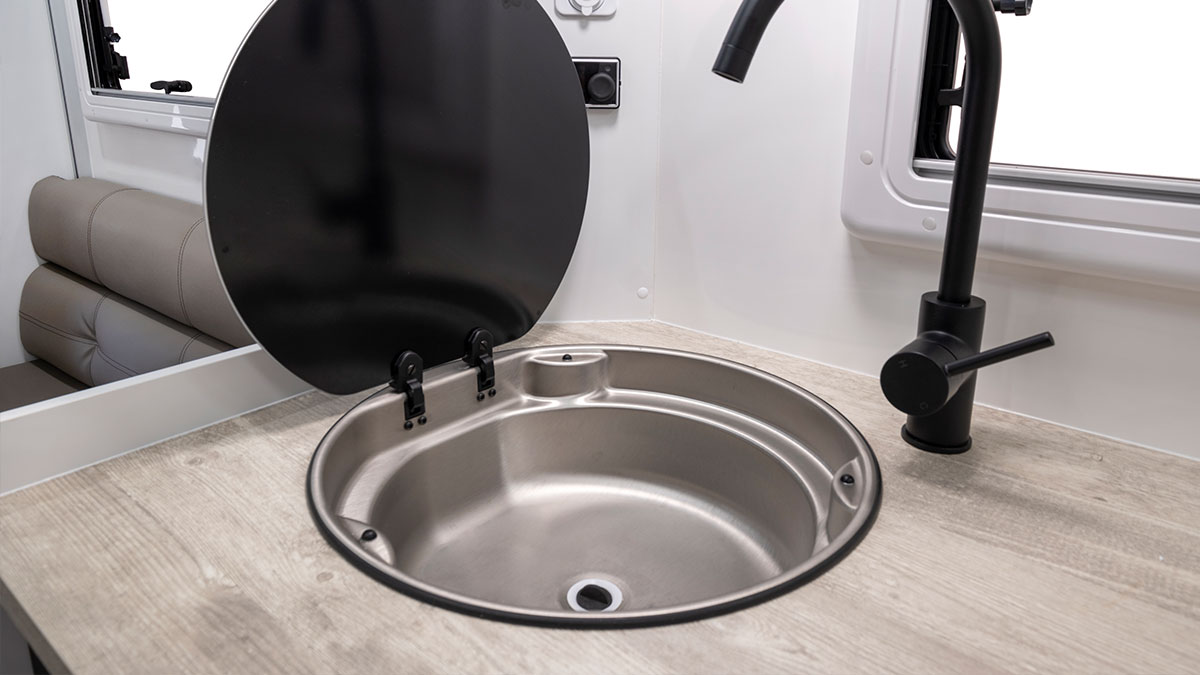

Kitchen sink, stainless steel with flickmixer
Laminated plywood benchtops
Kitchen cabinets and drawers

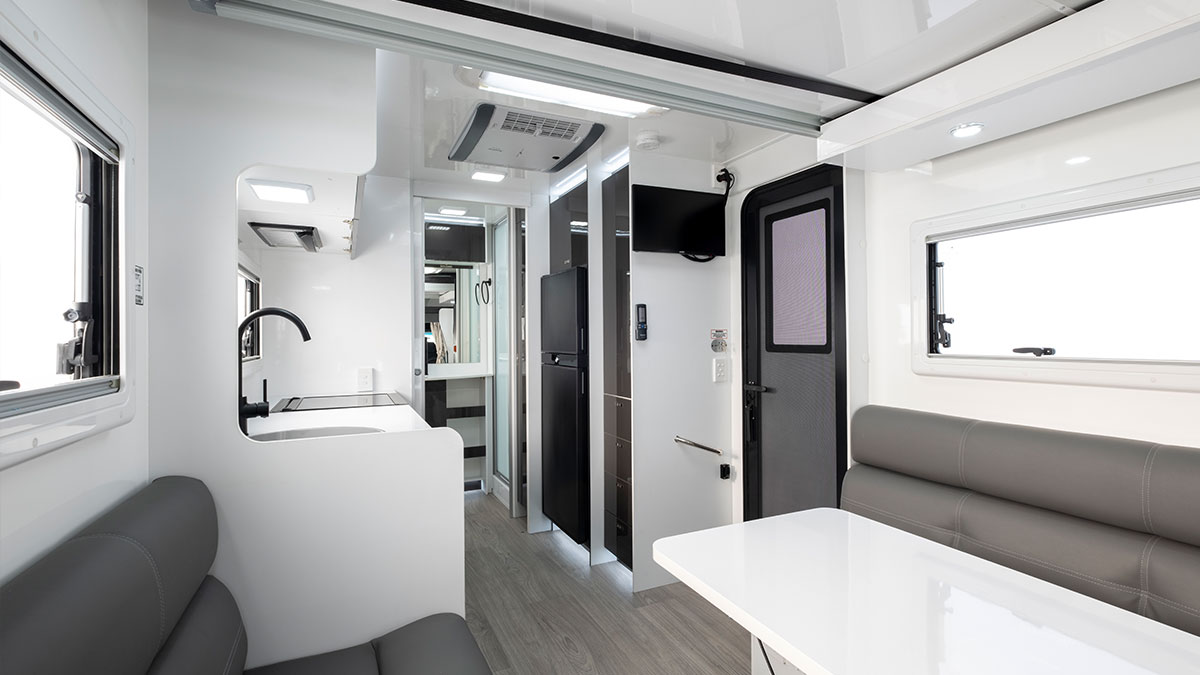

LIVING AREA

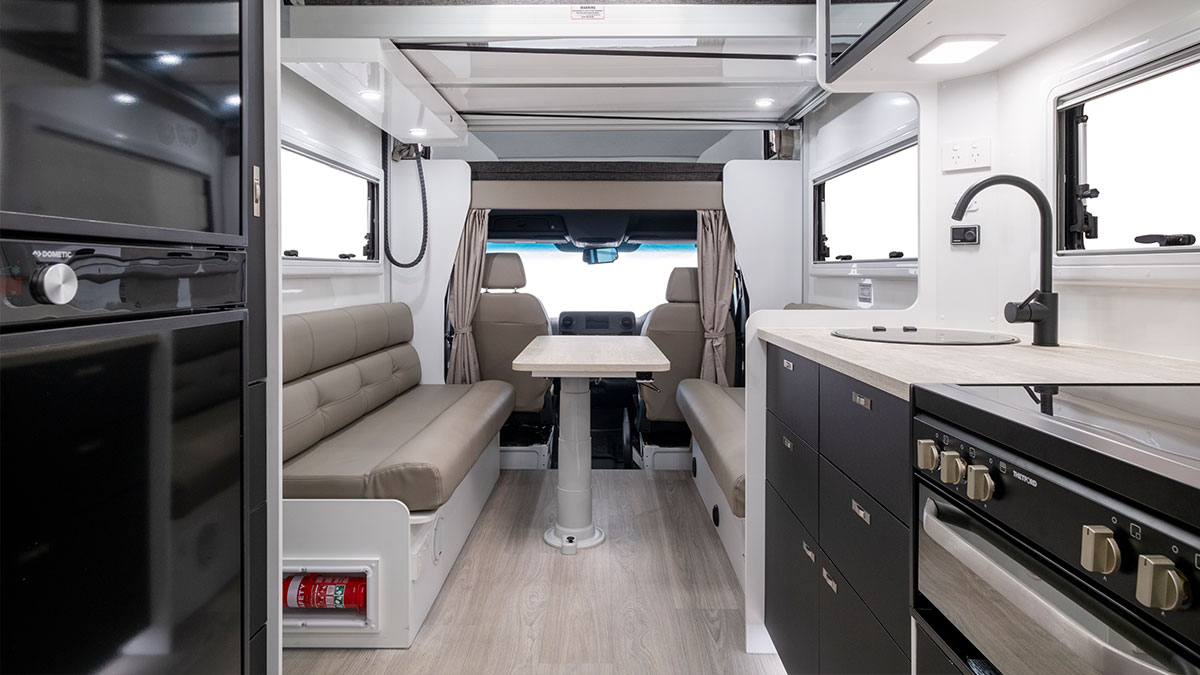

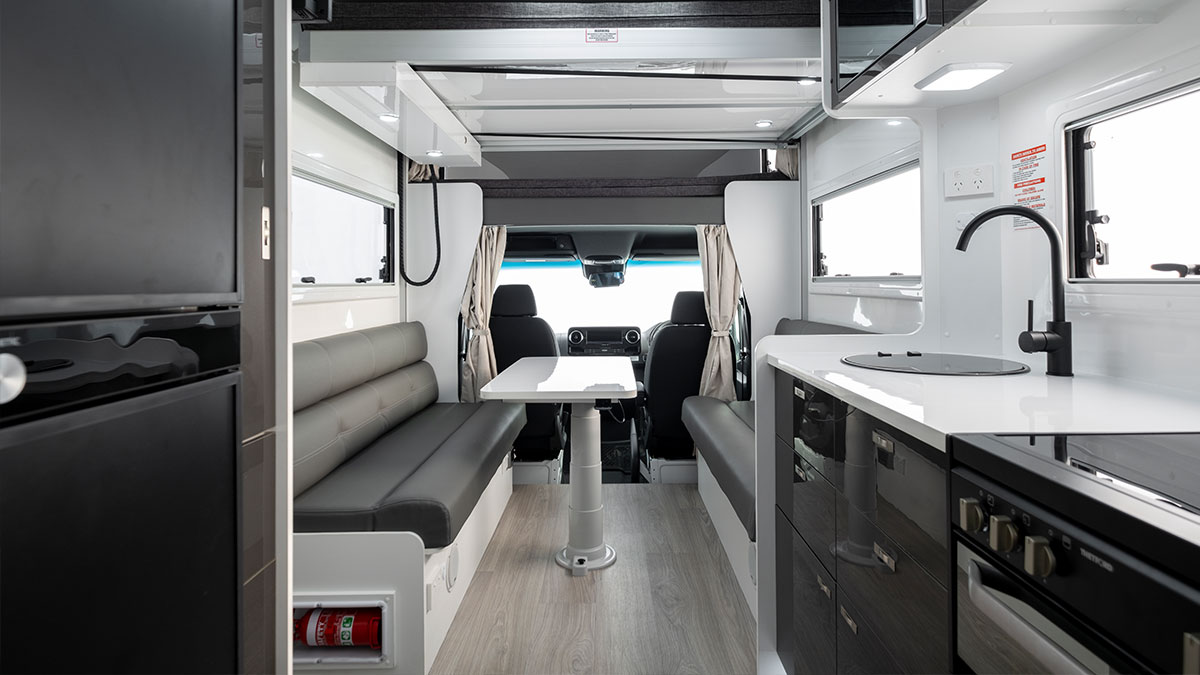

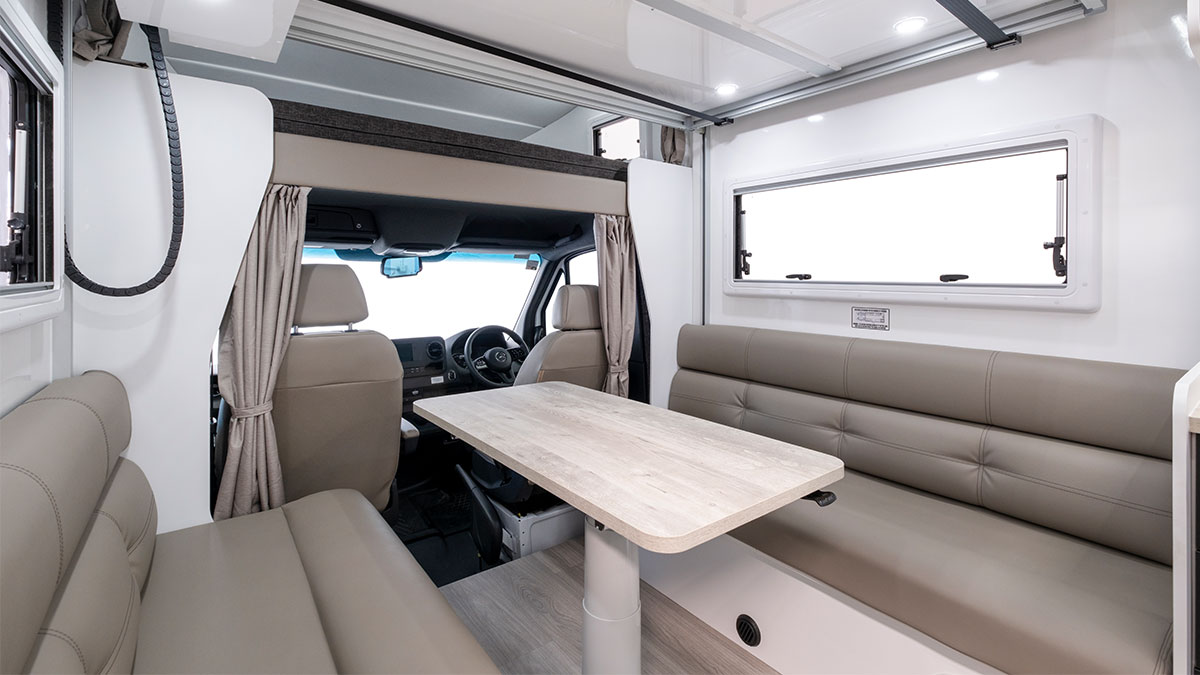

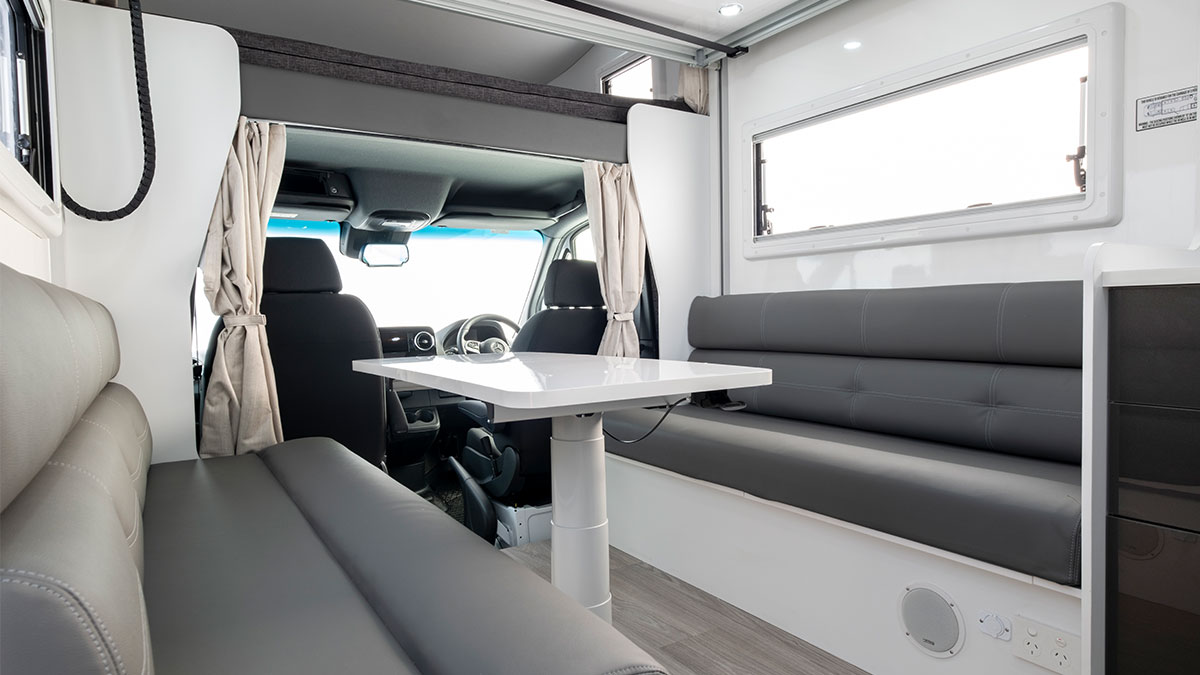

Forward lounge/dinette with adjustable table

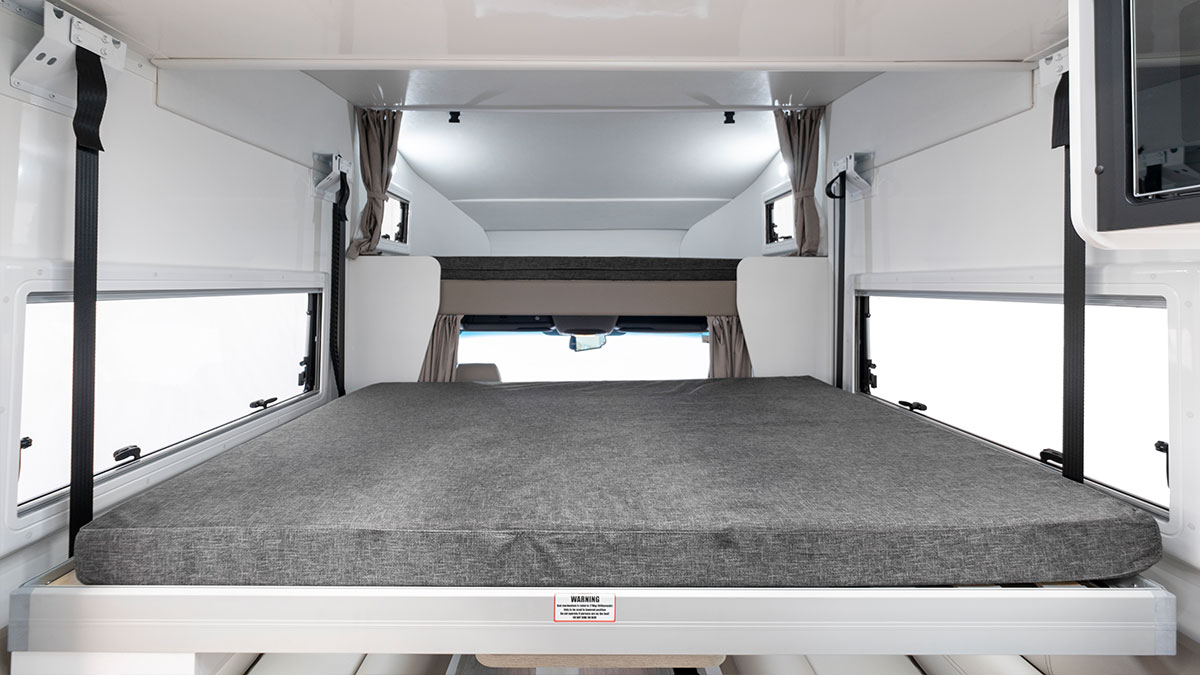

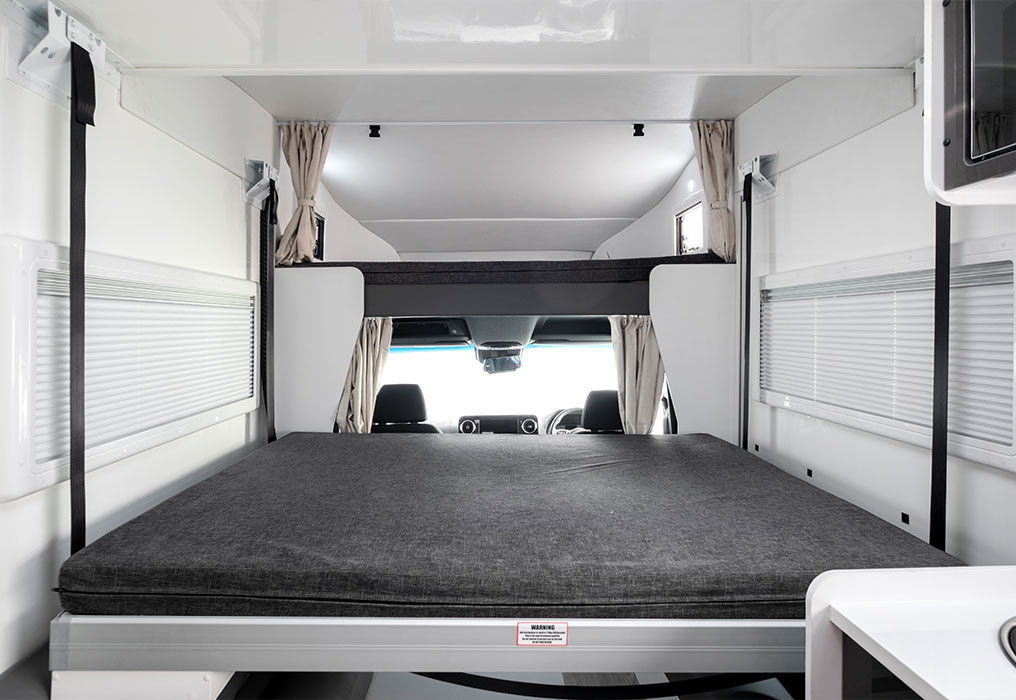

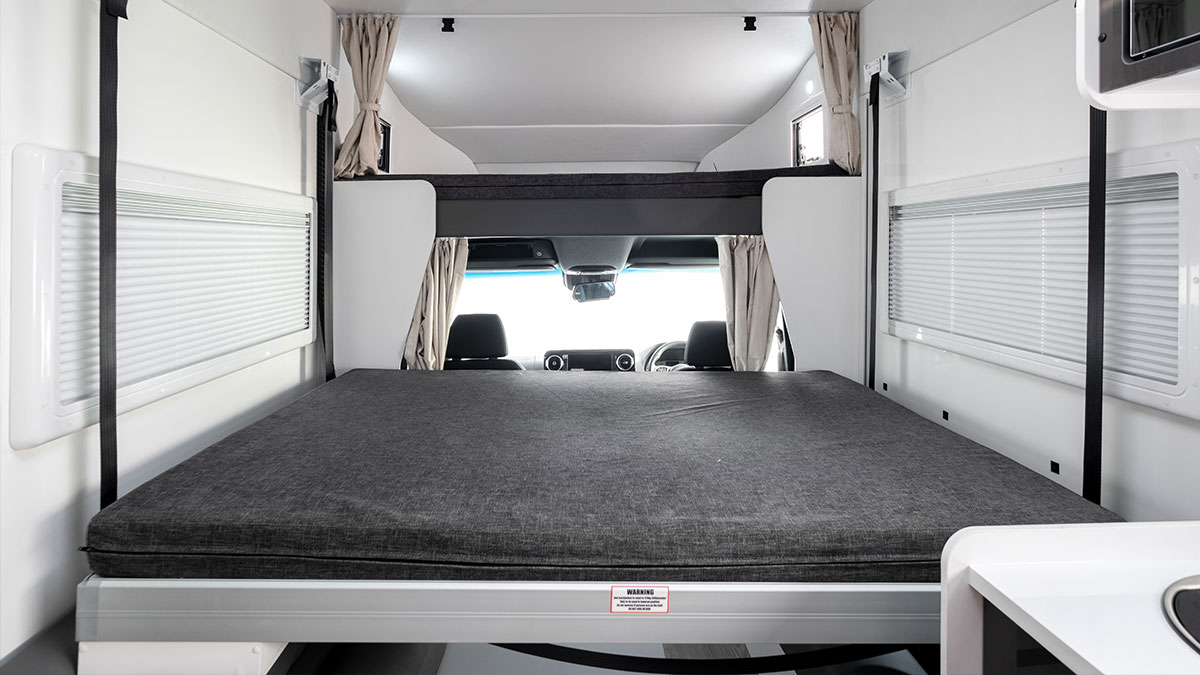

East-west electric drop down bed above
Television, 22” (56cm) 12V HD LED DVD/TV
Storage above drivers cab

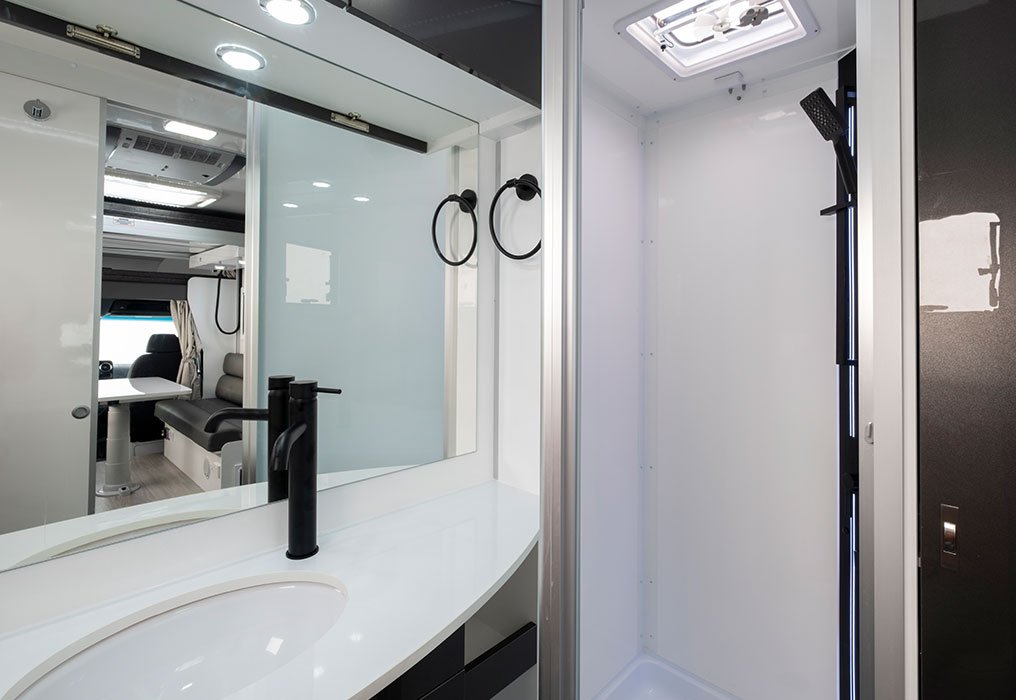

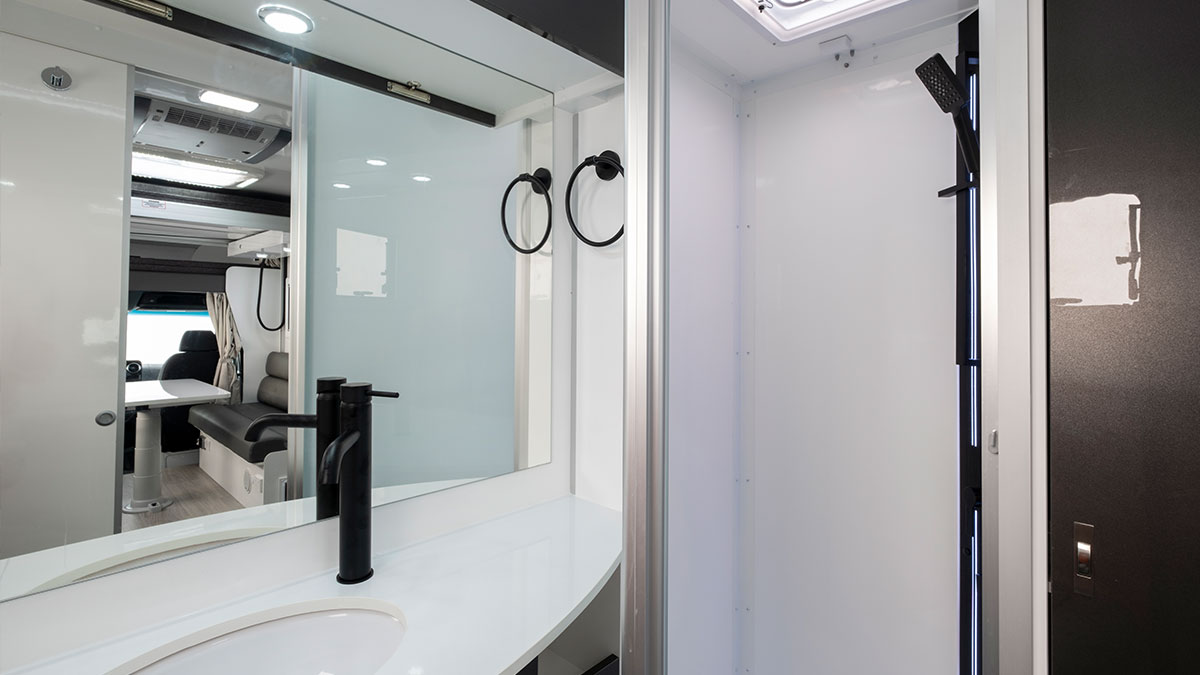

ENSUITE

Vanity with undermount hand basin & flickmixer
Mirror to wall above vanity
Fully enclosed shower with frosted glass door
Swivel cassette toilet 18L with electric flush

Rev# 140122
